360° Surface Ceiling Occupancy PIR - Surface5012483014783SLW360N

Loading …

Overall Dimensions (mm)
Dia: 100.5mm
Depth: 42.5mm
Timeguard

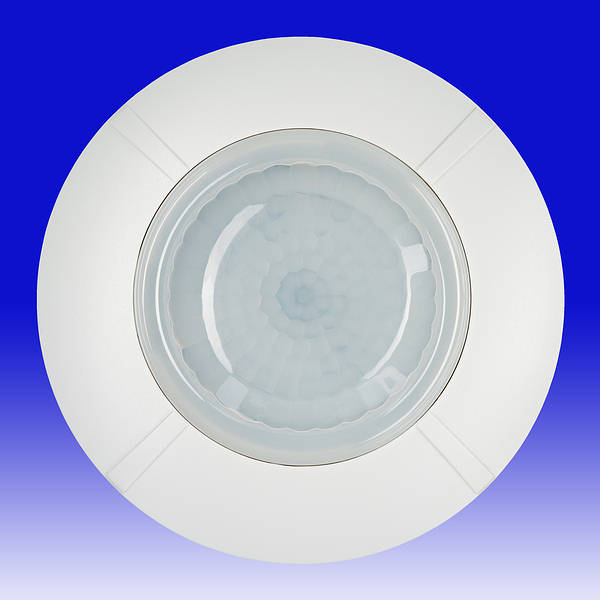

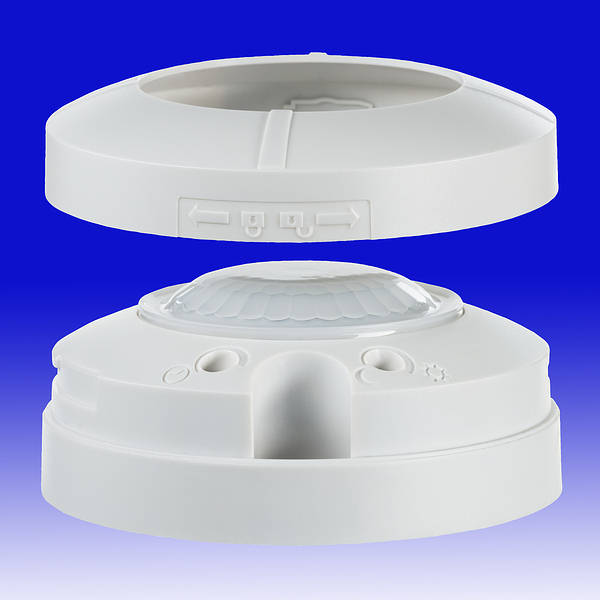

SLW360N 360° Ceiling Occupancy Pir
Surface Mounting
SLFM360N can be wired in parallel to enable any detector to turn ON
all of the lights connected to it (the total wattage capability of the unit must not be exceeded).

Ideal for energy saving installations in the workplace, corridors, offices, toilets etc., where light control can make all the difference
  • 360° ceiling surface mount PIR sensor.
  • 8 metre diameter detection range (at 3m height).
  • No creep zone – maximum coverage.
  • Light ON time adjustable 3 secs - 18 mins.
  • Manual ON/OFF override.
  • IP44 weatherproof rating.
  • Adjustable light level control.
  • Supplied with sticky backed film to stick over the sensor in order to reduce the angle of detection if necessary.
  • Not suitable for discharge lighting.
  • Operating Voltage - 230V AC
  • Total PIR switching
    2000W incandescent or halogen,
    500W fluorescent (low loss ballast),,
    200W fluorescent (electronic ballast),
    75W Fan
    LED lamps <10W Lamps, max 10
    LED lamps >10W <32W, max 5 sets
    Not suitable for discharge lighting.
  • Maximum Fusing - 10A
  • Weatherproof Rating - IP44 (Internal use only)
  • Angle of Detection - 360°
  • Light On Time After last detection (Adjustable) - 3 Seconds (Min), 18 Minutes (Max)
  • Permanent ON Facility - (Electronic)
  • Adjustable Light Level Control - Yes (1 to 1000Lux)
  • Conforms to Directives - 73/23/EEC, 89/336/EEC

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo
SM SLW360N

360° Surface Ceiling Occupancy PIR - Surface
