10 Way Surge Protected Extension Socket - 125 LEFT5012483008522SPS10G

Loading …

Dimensions:
Height: 125mm.
Width: 380mm.
Depth: 25mm.

Weight: 1.0kg.
Timeguard

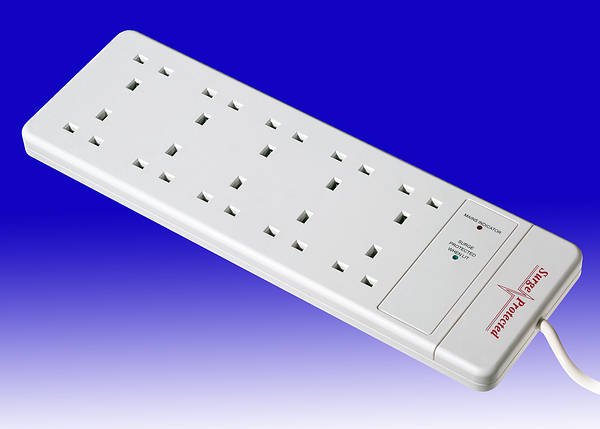

10 Way Surge Protected Extension Socket
Protects valuable, delicate plug-in electrical appliances against
high-energy transients (voltage spikes) on the 230V mains supply line.

Redirects high-energy transients on the mains supply lines
harmlessly to earth and away from associated eqipment and operators.

Ideal for protecting: PC's & Computer games, Hi-Fi, CD,
Satellite equipment, Telephones & answering machines, TV's, VCR's & DVD players.
  • 2 metre cable length with BS1363 plug fitted.
  • Three seperate mains protection devices between L-N, L-E, N-E with thermal overload protection.
  • Optional wall mounting holes provided (keyhole type at rear).
  • Tough flame retardant moulding.
  • No. Of Ways: 10.
  • Operating Voltage: 230V AC.
  • Surge Rating (Max): 4500A.
  • Mains Protection Modes: L-N, N-E, L-E.
  • Maximum Current: 13A (3kW).
  • Resets automatically.
  • Dissipates incoming and outgoing transients.
  • Separate Mains On and mains protection intact indication.
  • Neon indication to denote:
    1) Surge protection is intact.
    2) Supply fuse is intact.
  • Operating Temp Range: 0 – 40ºC.
  • Factory Fitted Fuse: BS1362 13A.
  • Power Consumption: 0.2W.
  • EC Directives Conforms to Latest Directives.

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo
SM SPS10G

10 Way Surge Protected Extension Socket - 125 LEFT Clearance Stock
