WiFi Programmable Digital Room ThermostatTRTWIFI

Loading …

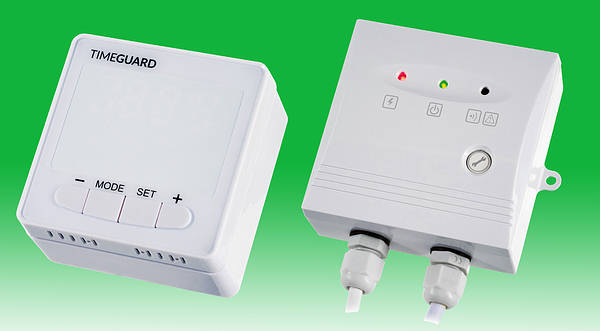

Power box:
H: 101mm, W: 107mm, D: 33.5mm

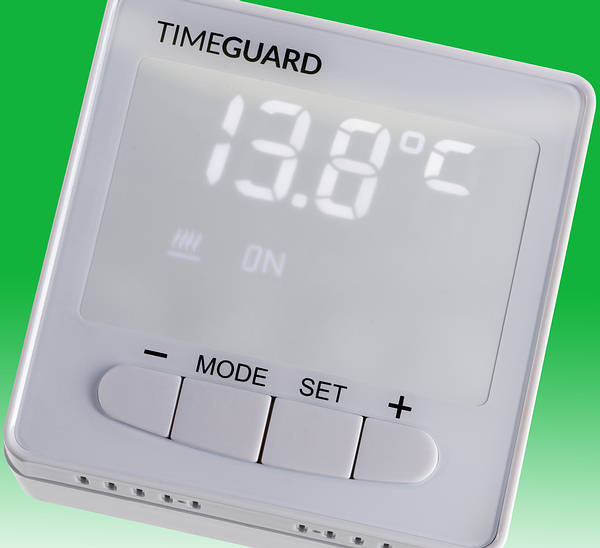

Thermostat:
H: 90mm, W: 90mm, D: 46mm
Timeguard
Wi-Fi Controlled Digital Room Thermostat
Wi-Fi controlled digital room thermostat.

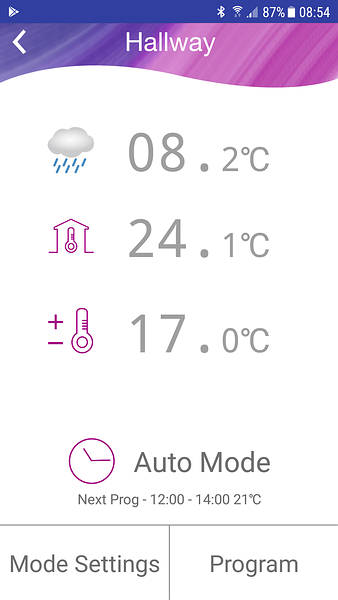

Programme settings are all activated via your mobile device, giving you access to control your heating at any time, no matter where you are.
  • Available for Android and IOS only.
  • Works with Wi-Fi and 4G.
  • Supports multiple users/devices.
  • Enables user to programme, change and check heating status
  • wherever they are.
  • Schedule heating times over a week with up to 6 time/temperature periods per day with weekly repeats.

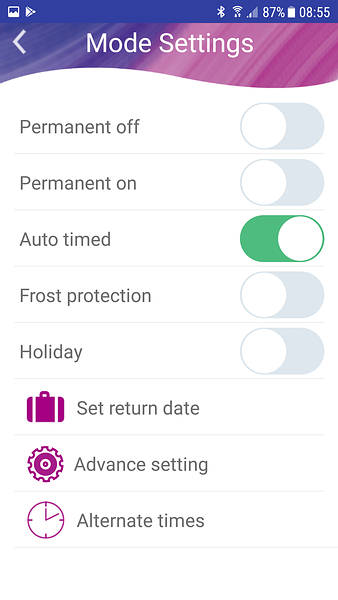

  • 5 programming modes available
  • Auto Timed, ON, OFF, Frost Protection and Holiday mode.
  • 5°C to 35°C set temperature range with temperature adjustment in 0.5 degree steps.
  • Thermostat Fits to supplied surface mount box or a BS flush mount box (min. 35mm depth).
  • Thermostat simply replaces existing 2 or 3 wire installation enabling Wi-Fi connection via home router.
  • 6(2)A Power Box Switch Rating, Switch Type: Single Pole Single Throw (SPST)
  • Wall Mount Power Box designed for easy connection to boiler.
  • Light Indicators: Red LED (Power), Green LED (Output), Orange LED (Wi-Fi Connection)
  • Specification:
  • Timer Mode -Room Thermostat
  • Setting Type - Wi-Fi and 4G.
  • App Availability - Android and iOS
  • App Supports - Multiple Devices and Users
  • Operating Voltage - 230V AC
  • Switch Rating - 6(2)A Resistive
  • Operating Temperature - 0 to 40ºC
  • EC Directives - Conforms to Latest Directives

Technical:

SMNTTWIFI Instructions 910kb pdf

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

SM TRTWIFI

WiFi Programmable Digital Room Thermostat

EACH

3+

£65.00

£63.00

EACH

3+

£78.00

£75.60
