XLED 10 EVO 3 Sensor Floodlight - White4007841005689005689

Dimensions(w x h x d):
205mm x 200mm x 220 mm

Voltage 230-240 V/50 Hz
Steinel
XLED 10 EVO 3 Sensor Floodlight - White
Evolution 3 Designer sensor-switched LED floodlight XLED 10 now even better

Ideal for loading bays, courtyard entrances and outdoor spaces around buildings,

Interconnectable by cable, 30 Watts LED/2000 lm for perfect
illumination on a minimal amount of energy, 240° angle of coverage,
max. reach 12 m, light panel and sensor fully swivelling,

STEINEL Active-Thermo-Control.

Live life conveniently and save energy too.
More quality of life, more safety and security and more energy saved with intelligent sensor and LED technology from STEINEL.

Light ON/OFF – automatically.
Highly innovative sensors respond to movements and light levels,
automatically switching the powerful LED light
ON and OFF again after a preselected time.
  • Sensor type Passive infrared
  • Output 10 LEDs, approx. 30 Watts
  • Max. output (resistive load, incandescent lamp) 800 W
  • Brightness 2000 lm
  • Efficiency 66.6 lm/W
  • Light colour 4100
  • LED life expectancy up to 50000 h
  • Floodlight positioning range
    270° horizontally, 200° vertically
  • Detection angle 240° with sneak-by guard
  • Capability of masking out individual segments Yes
  • Reach 12 m all round, temperature-stabilised
  • Sensor system 9 detection levels304 switching zones
  • Response brightness 2-2000 lx
  • Time setting 5 sec. - 15 min.
  • IP rating IP44
  • Protection class I
  • Basic light level
    a) all night
    b) 10 min. after expiry of the set time
    10% basic brightness (approx. 3 W)
  • Manual override Selectable, 4h
  • Material Aluminium
  • Temperature range -20 - +50 °C

Technical:

Data Sheet / Specifications - 160kb pdf

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

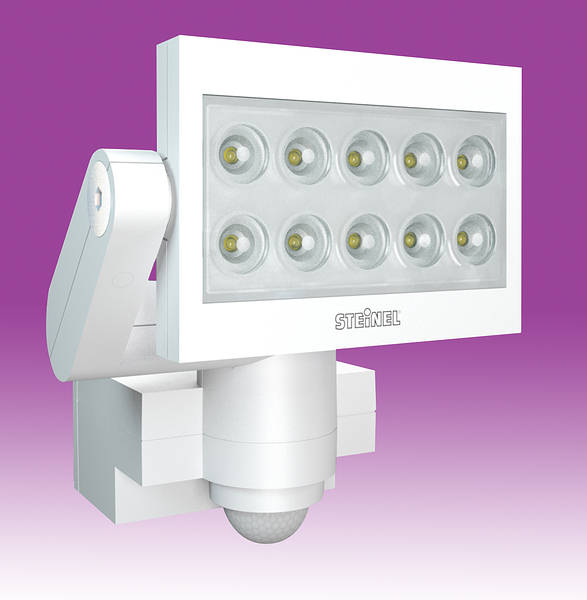

product photo

ST XLED10EVOW

XLED 10 EVO 3 Sensor Floodlight - White

EA

£168.00

EA

£201.60
