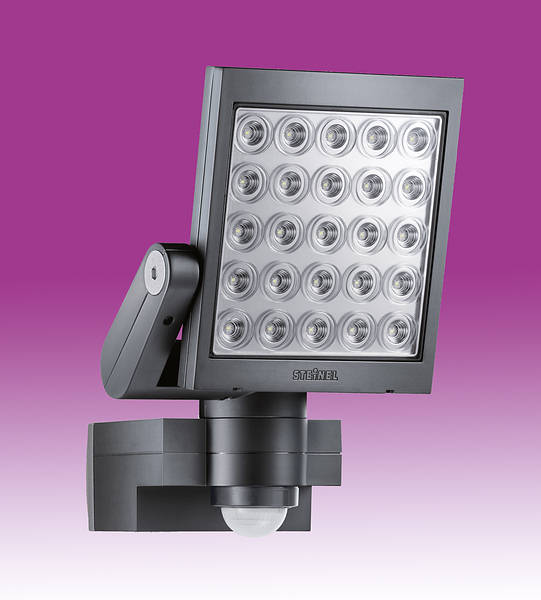

XLED 25 Evolution 3
LED Sensor Floodlight - Black
Evolution 3 Designer sensor-switched LED floodlight XLED 25 even better.
Ideal for loading bays, courtyard entrances and outdoor spaces around buildings, Interconnectable by cable.
62 Watts LED/4000lm for perfect illumination on a minimal amount of energy,
240° angle of coverage, max. reach 12 m,
Light panel and sensor fully swivelling,
Live life conveniently and save energy too.
More quality of life, more safety and security and more energy saved with intelligent sensor and LED technology from STEINEL.
Light ON/OFF automatically.
Highly innovative sensors respond to movements and light levels,
automatically switching the powerful LED light ON and OFF again after a preselected time.
Sensor type - Passive infrared
- Output - 25 LEDs, approx. 62 Watts
- Max. output (resistive load, incandescent lamp) - 800 Watts
- Brightness 4000 lm
- Efficiency 64.5 lm/W
- Light colour 4100
- LED life expectancy up to 50000 h
- Floodlight positioning range -270° horizontally, 200° vertically
- Detection angle 240° with sneak-by guard
- Capability of masking out individual segments - Yes
- Reach 12 m all round, temperature-stabilised
Sensor system 9 detection levels
304 switching zones
- Response brightness - 2-2000 lx
- Time setting - 5 sec. - 15 min.
- IP rating- IP44
- Basic light level
a) all night
b) 10 min. after expiry of the set time
10% basic brightness (approx. 3 W)
- Manual override selectable, 4h
- Material Aluminium
- Temperature range -20 - +50 °C
