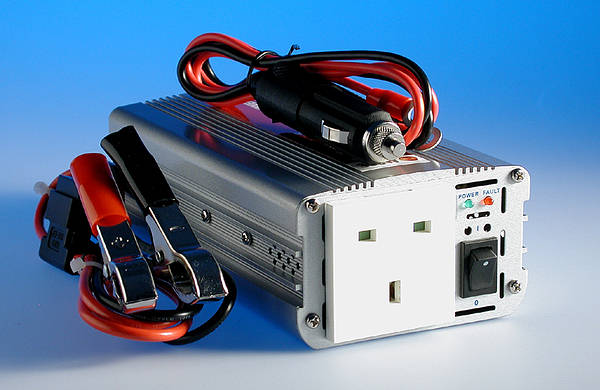

Soft Start Compact 12v dc to 230v ac - 300w
To Power 220v - 240v ac Equipment
from a 12v dc Car or Boat Battery
Compact-sized high efficiency inverters to power 230V mains equipment via a 12 or 24V battery.
Modern electronics with stabilised output voltage and short-circuit
and overload protection with LED fault indicator.
Soft-start circuitry which protects the connected equipment.
Supplied with a 0.8m lighter socket lead (max. power use 150W)
and a fused (35A) battery lead with heavy duty crocodile clips.
AC frequency - 50Hz (±1%)
- Continuous power - 300W
- Efficiency - 90%
- Output voltage - 230Vac
- Peak power - 1000W
- Stability - ±10%
- Dimensions - 190 x 95 x 58mm
- Weight - 1.1kg
Because this unit has a soft start facility the output voltage will be reached after a few seconds to avoid higher inrush of currents on inductive loads. Because of this the inverter will easily start even with loads like TV and other units using transformers.
- Temperature controlled fan
- Soft start (Minimises inverter shutdown when using large inductive loads)
- Reverse polarity protection
- Battery low/high shutdown
- Short circuit & overload protection
- Over temperature protection
- Available in 12V and 24V versions
