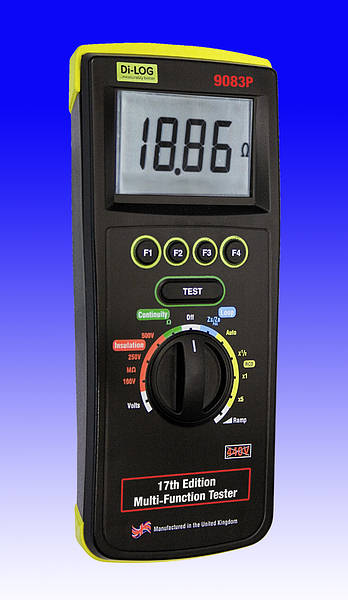

18th Edition Multifunction Test Meter
Product Code: TM 9083P
5060082542299
9083P
Loading …
6 x 1.5 V AA batteries
Supplied c/w Batteries
Dimensions
260 x 105 x 55
The 9083P is supplied with the following items:
1 off 9083P unit
1 off professional carry case
1 off Di-LOG mains test lead
1 off 1.2 M black test lead
1 off 1.2 M red test lead
1 off 1.2 M green test lead
1 off Operating Instruction Manual
1 off Leadless probe
1 off black crocodile clip
1 off red crocodile clip
1 off green crocodile clip
18th Edition Multifunction Test Meter
The all new 9083P multi function tester has been designed to take into account
the requirements of the forthcoming 18th Edition and Part P testing standards.
It also incorporates many of the features that you have requested.
The unique RCD-LOC feature allows loop testing without tripping any type of RCD.
The 9083P is fully compliant with the performance requirements of BS EN 61557
the requirements of the forthcoming 18th Edition and Part P testing standards.
It also incorporates many of the features that you have requested.
The unique RCD-LOC feature allows loop testing without tripping any type of RCD.
The 9083P is fully compliant with the performance requirements of BS EN 61557
- Loop impedance measurement without tripping out any RCD
- Insulation measurement with 100, 250, 500 V test voltages
- RCD testing, trip time, trip current, ramp current
- RCD auto test without going between the unit and RCD. With a recall of the test results.
- Continuity test with auto null facility to zero out lead resistance
- Protected against damage when accidentally connected across phases
- Integrated polarity test
- Display
31/2 digit LCD 1999 digits - Insulation resistance
0.05 – 2000 Mohm - Test voltage at 1mA
100, 250,500 V - Continuity
0.05 – 199 ohms - Loop Impedance
0.01 – 2000 Ohms
-
PSCC
0 – 26 Ka - RCD nominal test currents
10, 30, 100, 300, 500 mA, 1/2 x 30 mA, 5 x 30 mA - Trip time
0 ms – 500ms - Tripping current with ramp test
1/2 rated current to 1.1 rated current - Voltage
0 – 440 V - Frequency
45 – 65 Hz - Safety standards
EN61010, BS EN 61557 BS 7671 - Over voltage category
CAT III 300 V - Supplied c/w Batteries
6 x 1.5 V AA batteries
Supplied c/w Batteries
Dimensions
260 x 105 x 55
The 9083P is supplied with the following items:
1 off 9083P unit
1 off professional carry case
1 off Di-LOG mains test lead
1 off 1.2 M black test lead
1 off 1.2 M red test lead
1 off 1.2 M green test lead
1 off Operating Instruction Manual
1 off Leadless probe
1 off black crocodile clip
1 off red crocodile clip
1 off green crocodile clip
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
TM 9083P
18th Edition Multifunction Test Meter |
