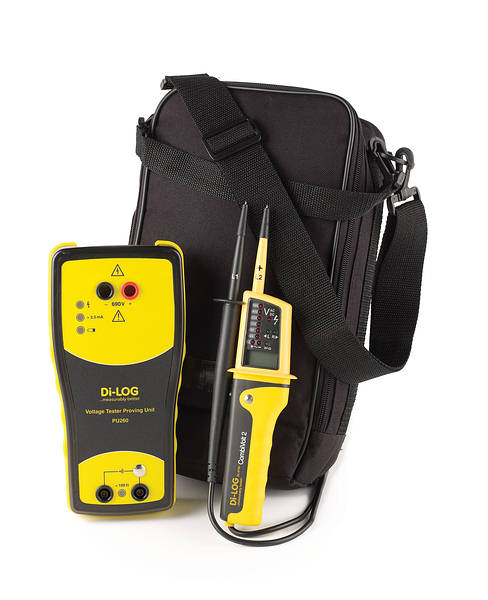

CombiVolt 2 Proving Unit Kit5060082542978DLPK2

DL6790 - CombiVolt 2
PU260 - Proving Unit Kit
Carry Case
CombiVolt™ 2 Safe Isolation Kit
Voltage & Continuity Testers with Phase Rotation Test.
The three-in-one testers with a rugged, ergonomically formed housing for perfect handling.

HSE GS38 - Requirement - The procedure for proving dead should be by use of a proprietary test lamp or
two pole voltage detector as recommended in HSE Guidance Note GS38,

Electrical test equipment for use by electricians.
Non-contact voltage indicators (voltage sticks) and multi-meters should not be used.

The test instrument should be proved to be working on a known live
source or proprietary proving unit before and after use.

All phases of the supply and the neutral should be tested and proved dead.
  • LCD Display - 8 digit
  • This tester has been designed in accordance with
  • the latest international safety standards.
  • The combivolt testers are fully automatic voltage indicators capable of measuring AC/DC Voltage - range from 12 up to 690V AC/DC
  • Continuity test function - with optical and acoustical indication
  • Three-phase rotation detection system - ‘no third hand required’
  • IP65 - water-jet and dust-tight protection for outdoor use
  • Electrical torch function - for working in dark environments
  • Probe-tip protection - for reducing the danger of injuries which may be cause by probe tip (attached to lead permanently available)
  • Fully operational voltage indication even when batteries are discharged or when no batteries are fitted
  • Integrated single pole test for phase detection
  • Short response time (<0,1s) for fast voltage tests
  • Fully compliant with GS38
  • Rugged, ergonomically formed housing for perfect handling
  • Designed and built according to IEC61010, IEC61243-3
  • Proving unit friendly
  • 2 off 1.5 V AAA (LR03) batteries, - supplied
  • Di-Log Proving Unit for 2 Pole Voltage Meters
  • A portable, battery powered Proving Unit for testing Two Pole Voltage Testers up to 690V
  • Continuity Tester for testing: Fuses, Fused test leads etc
  • Additional Touch Electrode for Quick Testing of Fused Leads
  • Optical and Acoustic Continuity Indication
  • Low battery indication
  • LED Display
  • Voltage 690V DC
  • Output Current higher than 3.5mA
  • Low Battery
  • Continuity
  • Voltage Test
  • Output Voltage 690V DC
  • = 200 k? load
  • Test Current = 3.5mA
  • Continuity Test
  • Continuity Range <100?
  • Test Current Approx 1mA
  • Scope of Supply
  • 1 pc Proving Unit
  • 10 pc Batteries 1.5V AA
  • 1 pc Instruction Manual
  • Miscellaneous
  • Temperature Range: 0.40°C / Max 70% RH
  • Power Supply: 10 x 1.5V AA / LR6
  • Dimensions: 220(H) x 110(W) x 40(D) mm
  • Weight: 650g (approx)


DL6790 Instructions 300Kb pdf TMDLPK1_2 KITS Specifications 850kb PDF PU260 Instructions.pdf - 96kb pdf
Order Code
Price (ex VAT)
Price (inc VAT)
product photo


CombiVolt 2 Proving Unit Kit
