PHASE SEQUENCE INDICATOR - Discontinued

Please try Test Meters for alternative products.

PHASE SEQUENCE INDICATORMARPSI3000

PHASE SEQUENCE INDICATOR

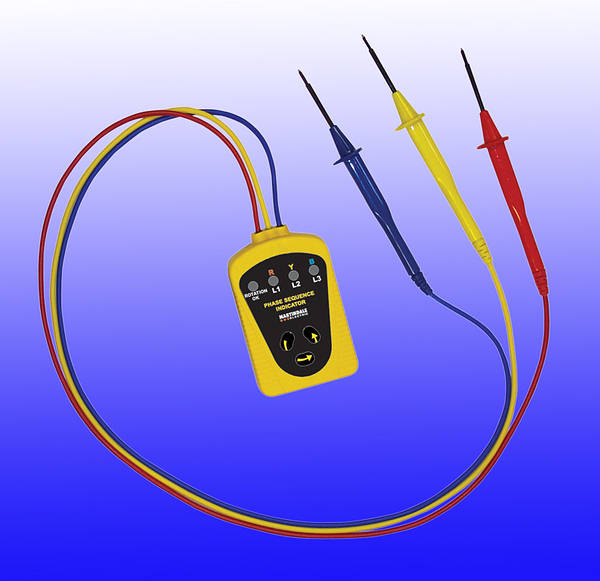

The Martindale PSI3000 is the ultimate phase sequence (rotation) indicator. It combines an easy to follow rotating disc with fault indicators showing if any of the phases are down. The disc continues to rotate after disconnection, giving more time to identify the phase sequence.
  • The new PSI3000 from Martindale Electric are the ultimate phase sequence (rotation) indicators, combining an easy to follow rotating disc with fault indicators that show if any of the phases are down. The PSI3000 uses a clockwise rotation disc and incorporates Martindale’s safety fused fixed-shroud leads for full compliance with GS38 and BS EN 61010.
  • For enhanced ease of use, the disc continues to rotate after disconnection, giving more time to identify the phase sequence, and a Velcro strap allows the units to be attached to conduits etc, so the hands are left free to use the test leads.
  • PSI phase sequence indicators are suitable for use on systems from 100V to 600V phase to phase, 40kHz to 60kHz. Neon indication is used from 100V phase to phase (RMS) and rotating disc operation is used from 200V phase to phase (RMS).
  • Three colour coded crocodile clips are supplied as standard.

Technical:

Instructions Technical

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

TM PSI3000

PHASE SEQUENCE INDICATOR Extended Range*

EA

£120.00

EA

£144.00

Discontinued
