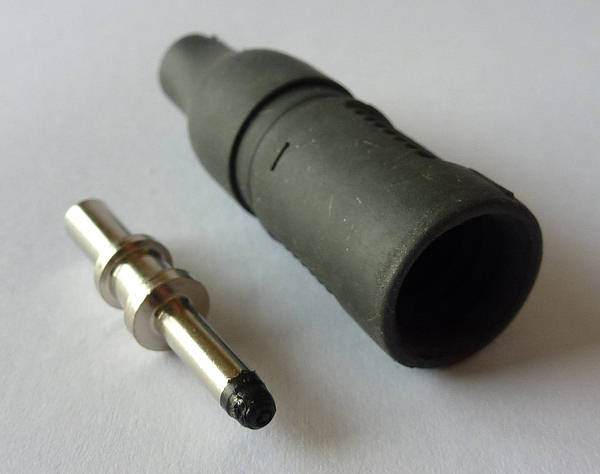

Type 3 - (MC3 Compatible) - Male
Can be installed on any conventional solar module junction box,
solar combiner box interconnection or added to solar modules with
existing MC3/Type 3 connectors for extended distances.
Greatly speeds up installation of solar array.
With excellent ageing resistance and UV endurance, it can be used in harsh environments.
The cable connects by means of a rivet and lock.
It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs.
Connectors are supplied with labels stating "Do not disconnect under load"
Rated Voltage: 1000V DC
- Rated Current: 20A
- Application Class: Class A
- Protection Class: Class II
- Insulation Material: PPO, black
Protection degree: IP65
- Contact material: Copper, tin plated
- Operating Temperature: -40O°C TO +85O°C
- Wire size Range: - 2.5,4mm²
- Standard: - DIN V VDE V 0126-5/05.08
