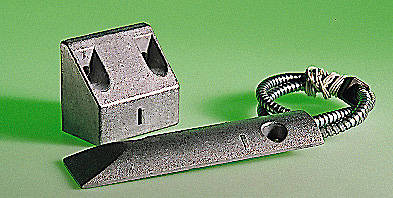

Roller Shutter Door Contact
Product Code: TS 013
0
MCO905 / F10A
Loading …
Dimensions:
150mm x40mm x 15mm.
Roller Shutter Door Contact
Material:
Aluminium.
Aluminium.
- Roller Shutter Contact, Grade 2, Single Reed 500mm
- Grade: 2
- Model: F10A
- Roller Shutter Single Reed
- Cable protected by 18? (457mm) armoured sleeving.
- Rated: IP67.
- Engineer Note: ensure that arrow on magnet lines up with dot on
- contact on housing for maximum operating gap and lateral tolerance.
- Temperature Range: -40oC to +50oC.
- Grade 2 Class III
- Potted - Single Reed
- 18” Armoured Sleeving
- Magnet: Ferrite or Alnico V
- Contact Material: Rhodium
- Voltage Range:
1 – 100v DC
125v AC Max - Switching Current:
500mA Max DC
500mA Max AC
Dimensions:
150mm x40mm x 15mm.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
TS 013
Roller Shutter Door Contact |
