Activ8 Single Channel Quad Pir with Colour Camera - Discontinued

Please try Burglar Alarm Systems for alternative products.

Activ8 Single Channel Quad Pir with Colour Camera50210730316118IR125

Supplied with optional universal mounting bracket - TS 8IR150
Activ8 Single Channel Quad Pir
with Colour Camera
The Activ8 range of internal movement detectors offers a simple,
reliable and cost effective solution to meet the requirements of the majority of installation needs.
With high precision sealed optics as standard,
full microprocessor control and the streamlined low-profile aesthetic design,
your choice of detectors has just been made easier
  • Camera operates in light levels as low as 0.5 Lux
  • Selectable pet immunity weights
  • 18m x 18m PIR detection range
  • Variable pulse width and PIR sensitivity adjustments
  • Complete with adjustable ceiling/wall mounting bracket
  • Pet Immunity as Standard
    Pet immunity option, selectable for up to 15Kg or up to 25Kg (excluding CTN and 360 variants).
  • Quad Element PIRs
    All Activ8 PIRs are Quad (four element) PIR sensors (excluding CTN).
  • Adjustable Pulse Count
    Variable pulse counting to minimise false alarms.
  • Full compliance with EN Standards
    Designed in accordance with EN50130-4:1995 and EN61000-6-3:2001, Class B, Security Grade 2, Environmental Class II to meet all current legislative requirements.
  • Additional White Light Filtration
    Supplied with additional white light filtration which can be fitted if required for harsh environments.
  • Easy Installation
    Knockouts top and bottom and optional dual-purpose ceiling and wall surface-mounted bracket, allows for easy installation.


Specification / Installation / Operating Manual
Order Code
Price (ex VAT)
Price (inc VAT)

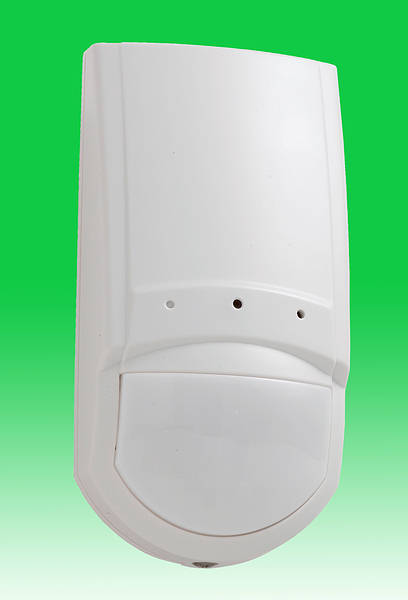

product photo


Activ8 Single Channel Quad Pir with Colour Camera Clearance Stock
