Activ8 Dual Channel Quad Pir with Microwave Detection - Discontinued

Please try Burglar Alarm Systems for alternative products.

Activ8 Dual Channel Quad Pir with Microwave Detection50210730315818IR110

Loading …

Supplied with optional universal mounting bracket - TS 8IR150
Activ8 Dual Channel Quad Pir with Microwave Detection
Selectable Pet Immunity Option
Microwave Detection
The Activ8 range of internal movement detectors offers a simple,
reliable and cost effective solution to meet the requirements of the majority of installation needs.
With high precision sealed optics as standard,
full microprocessor control and the streamlined low-profile aesthetic design,
your choice of detectors has just been made easier
  • 10.687GHz X-band doppler microwave
  • Selectable pet immunity weights
  • 15m x 15m PIR detection range
  • Variable pulse width, PIR and Microwave sensitivity adjustments
  • Individual LED indication for Microwave and
  • PIR detection
  • Pet Immunity as Standard
    Pet immunity option, selectable for up to 15Kg or up to 25Kg (excluding CTN and 360 variants).
  • Quad Element PIRs
    All Activ8 PIRs are Quad (four element) PIR sensors (excluding CTN).
  • Adjustable Pulse Count
    Variable pulse counting to minimise false alarms.
  • Full compliance with EN Standards
    Designed in accordance with EN50130-4:1995 and EN61000-6-3:2001, Class B, Security Grade 2, Environmental Class II to meet all current legislative requirements.
  • Additional White Light Filtration
    Supplied with additional white light filtration which can be fitted if required for harsh environments.
  • Easy Installation
    Knockouts top and bottom and optional dual-purpose ceiling and wall surface-mounted bracket, allows for easy installation.


Specification / Installation / Operating Manual
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity

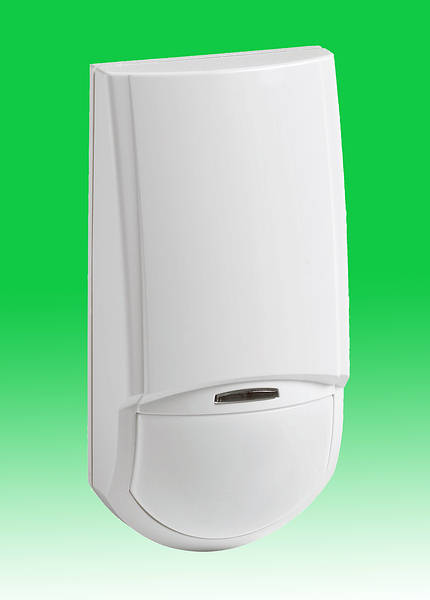

product photo TS ACTIV8DT Activ8 Dual Channel Quad Pir with Microwave Detection
