DUAL TEC Pir 12m c/w Pet Immunity0DT8012F5

Loading …

9.8cm H x 5.7cm W x 4.35cm D
102g (net weight)

Operating Temperature
-10°C to 55°C

Relative Humidity
5 to 93%; non-condensing

Temperature Compensation Advanced Dual Slope
Honeywell DT8012F5 PIR
12m Motion Sensor with Pet-Immunity
Designed with the installer in mind, these high performance small form factor motion detectors offer a trouble-free, out of the box experience to simplify the install process and reduce install time. With the DUAL TEC DT8012F5, optimum performance is achieved using custom developed extended range Fresnel optics, look down, cover and wall tamper, and selectable pet immunity.

Leading edge sensing technologies and a wide range of models to suit the requirements of most applications, Honeywell’s family of IS3000 and DT8000 motion detectors will maximize intruder detection while diminishing false alarms.
  • Sleek, Sturdy Housing
  • Sealed Optics and Electronics
  • Pet-friendly Selectivity
  • Integrated Screw Retention Features
  • Uniform Sensitivity Optics
  • Wall-to-Wall Coverage
  • Advanced DualCore Signal
  • Superior Detection and False Alarm Immunity
  • Selectable Look Down
  • PIR White Light Immunity
  • Flashlight Walk Test
  • Flexible Mountings
  • Range: 12m x 17m
  • Power: 9.0 - 15 VDC; 9 mA typical,14 mA maximum, 12 VDC;
    AC Ripple: 3 V peak-to-peak at nominal 12 VDC
  • Alarm Relay
    Energized Form A; 30 mA, 25 VDC,
    22 Ohms resistance maximum.
    Alarm Relay Duration: 3 seconds
  • Tamper
    Cover & Wall; (NC with cover installed) Form A; 30 mA, 25 VDC
  • Microwave Frequencies – 10.587 GHz
  • RFI Immunity
    20V/m 10-1000 MHz, 15V/m 1000-2700 MHz
  • PIR White Light Immunity <6,500 Lux typical
  • Fluorescent Light Filter – 50 Hz/60 Hz
  • Pet Immunity 45kg
  • Approval Listings
    EN50131-2-4 Grade 2 Class II, NF&A2P 2 shields, GOST-R, PD6662:2010
Product Code
Price (ex VAT)
Price (inc VAT)

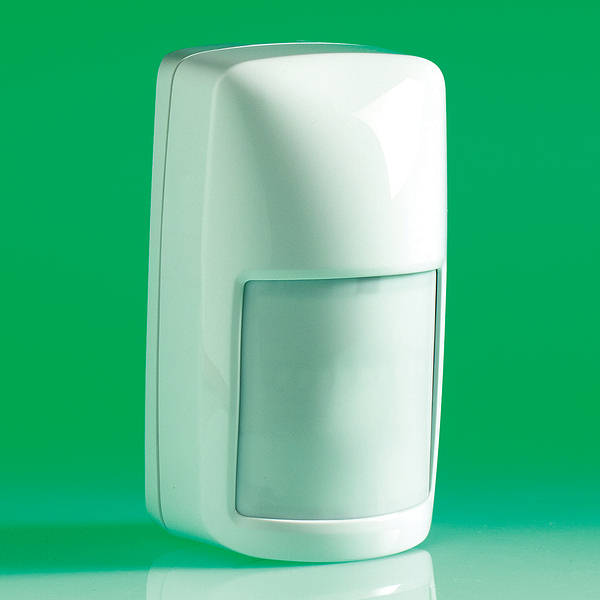

product photo
TS DT8012

DUAL TEC Pir 12m c/w Pet Immunity
