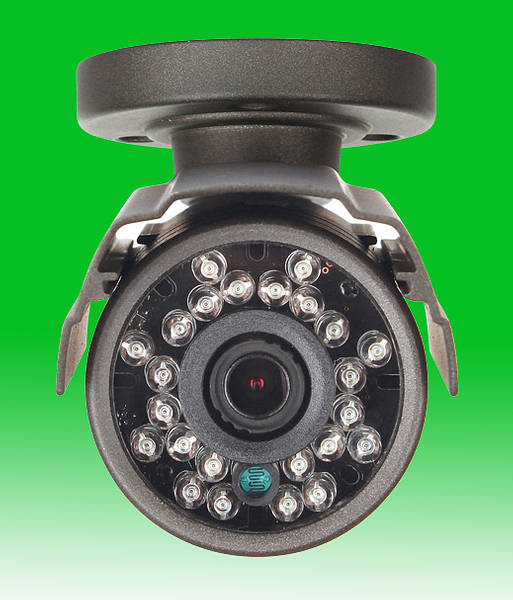

1080P HD 3.6mm 2MP Bullet Camera c/w 20m IR LED
Product Code: TS FHDVC36FB
5060224106501
FHDVC36FB
Loading …
153(W) x 70(H) x 57(D)mm
Weight: 350g
ES PSIL - at camera
or connected with shotgun cable when powered from DVR
Full 2MP 1080P Bullet CCTV Camera - Black
3.6mm Lens - 20Mtr IR
3.6mm Lens - 20Mtr IR
all feature the multi-function on screen display (OSD) settings.
Camera Housing IP Rating IP66
Whilst in many situations you will find an ‘out of the box installation’ will give excellent results
the OSD settings will enable you to make adjustments to the cameras final output to
provide an excellent image in the most demanding situations.
Please read through this manual prior to
installation in order to better understand all the functionality of the product.
- Pick up Element 1/2.7"
- Eective Pixels (H×V) NTSC/ PAL:1920(H)x1080(V)
- Horizontal Resolution 1080P
- Minimum Illumination 0.1 Lux/F2.0
- 0 Lux (with IR LED ON)
- S/N Ratio More than 58dB
- Scanning System Progressive
- Synchronous System Internal, Negative sync.
- Auto Electronic Shutter NTSC: 1/60s~1/100,000s,
- PAL: 1/50s~1/100,000s
- Gamma Characteristic 0.45
- IR Distance 20 Meters
- IR Status Under 10 Lux by CDS
- IR Power On CDS AUTO Control/ICR
- Video Output 1Vpp, 75?
- Auto Gain Control Auto
- Power/Current DC12V(+/-10%)/240mA
- Lens 3.6mm Fixed Lens
- Dimension 153(W)x 70(H)x57(D)mm
- Weight 350g
- Storage Temperature -30~+60 °C RH95% MAX
- Operating Temperature -10~+50 °C RH95% MAX
153(W) x 70(H) x 57(D)mm
Weight: 350g
ES PSIL - at camera
or connected with shotgun cable when powered from DVR
Technical:FHDVC36FB Inst 1.8Mb pdf |
|
