1080P HD 3.6mm Dome Camera c/w 20m IR LED - White - Discontinued

Please try BNC CCTV Cameras for alternative products.

1080P HD 3.6mm Dome Camera c/w 20m IR LED - White5060224106532FHDVC36FDL

Loading …

¢93x 65(H)mm

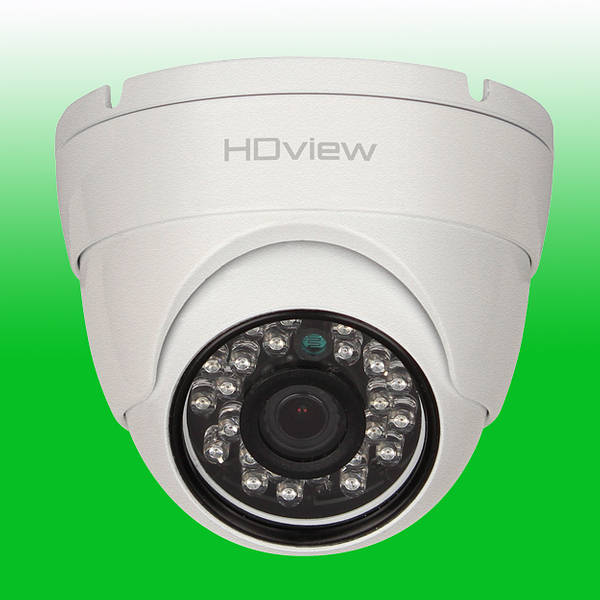

Full 2MP 1080P Dome CCTV Camera - White
3.6mm Lens - 20Mtr IR
In addition to the 1080P HD resolution the Hdview range of CCTV cameras
all feature the multi-function on screen display (OSD) settings.

Camera Housing IP Rating IP66

Whilst in many situations you will find an ‘out of the box installation’ will give excellent results
the OSD settings will enable you to make adjustments to the cameras final output to
provide an excellent image in the most demanding situations.

Please read through this manual prior to
installation in order to better understand all the functionality of the product.
  • Pick up Element 1/2.7"
  • Eective Pixels (H×V) NTSC/ PAL:1920(H)x1080(V)
  • Horizontal Resolution 1080P
  • Minimum Illumination 0.1 Lux/F2.0
  • 0 Lux (with IR LED ON)
  • S/N Ratio More than 58dB
  • Scanning System Progressive
  • Synchronous System Internal, Negative sync.
  • Auto Electronic Shutter NTSC: 1/60s~1/100,000s,
  • PAL: 1/50s~1/100,000s
  • Gamma Characteristic 0.45
  • IR Distance 20 Meters
  • IR Status Under 10 Lux by CDS
  • IR Power On CDS AUTO Control/ICR
  • Video Output 1Vpp, 75?
  • Auto Gain Control Auto
  • Power/Current DC12V(+/-10%)/240mA
  • Lens 3.6mm Fixed Lens
  • Dimension 93 x 65(H) mm
  • Weight 360g
  • Storage Temperature -30~+60°C RH95% MAX
  • Operating Temperature -10~+50°C RH95% MAX


FHDVC36FDL Inst 2.0Mb pdf
