GuardCam WF-SA External Protection System + Receiver (Discontinued)

GuardCam WF-SA External Protection System + Receiver5060224105085GUARDCAM-WF-SA

Loading …

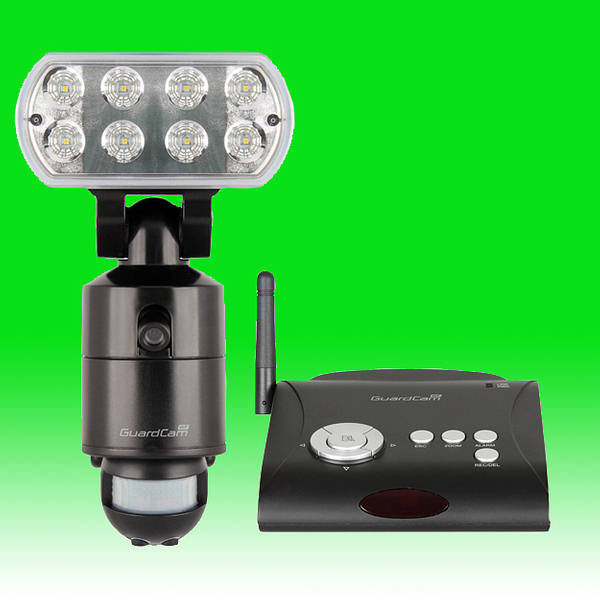

GuardCam WF-SA
External Protection System + Receiver
GuardCam WF is the ideal system for surveillance and protection of
external areas around homes, offices or industrial and agricultural units.

Up to four combined CCTV camera, PIR & LED floodlights can transmit images using
stable FHSS digital wire free technology to the included receiver with built in recording and comprehensive user controls.

Activity can be continuously monitored and recorded or triggered
automatically via on screen movement with selectable audio alert for occupants.

Captured images can be transferred to a PC or laptop for distribution if required.
  • Detection Method- Passive Infrared
  • Sensor Range - 12m x 140°
  • Camera Resolution- 640 X 480
  • LED Floodlight output - 8 x 1w NichiaHighPowerLED
  • Lumen output - 1100lm
  • Time adjustment - 5 seconds ~ 10 minutes
  • Lux adjustment - Dark - daylight
  • Transmitter signal technology- 2.4GHz FHSS Technology
  • Transmitter output power - 16bBm
  • Transmission Range - 150m open field
  • Voltage- 100-240V 50Hz/60Hz
  • Current drain - 225±20mA
  • IP rating - IP55
  • Operating Temperature- -10°C ~ 40°C
  • Dimensions - 160 x 176 x 260mm


Manual 864Kb pdf
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo TS GCWFSA GuardCam WF-SA External Protection System + Receiver
