True 1.3MP 720P Bullet CCTV Camera - Black - 3.6mm - 20Mtr IR5060224101889HDVC36FB

153(W) x 70(H) x 57(D)mm
Weight: 350g
True 1.3MP 720P Bullet CCTV Camera - Black
3.6mm - 20Mtr IR
In addition to the 720P HD resolution the Hdview range of CCTV cameras
all feature the multi-function on screen display (OSD) settings.

Whilst in many situations you will find an ‘out of the box installation’ will give excellent results
the OSD settings will enable you to make adjustments to the cameras final output to
provide an excellent image in the most demanding situations.

Please read through this manual prior to
installation in order to better understand all the functionality of the product.
  • 3.6mm Fixed Lens
  • True High Definition 1.3MP Sony
  • AHD sensor
  • Built in 20m Infrared LED Illumination
  • D-WDR incorporating ATR
  • 2D and 3D Noise Reduction
  • Exposure Control
  • High Light Compensation
  • 3-Axis Cable Management Bracket
  • IP66 Weatherproof Bullet Housing
  • Pick up Element: 1/3" SONY CMOS
  • Effective Pixels: NTSC/ PAL:1280(H) x 720(V)
  • Horizontal Resolution: 720P
  • Minimum Illumination:
    0.1 Lux/F2.00
    0 Lux (with IR LED ON)
  • Scanning System: Progressive
  • Auto Electronic Shutter
    NTSC: BR>1/60s~1/100,000s,
    PAL: 1/50s~1/100,000s
  • Video Output: 1Vpp, 75O
  • Auto Gain Contro: l Auto
  • Power/Current: DC12V(+/-10%)/240mA


How to use AHD camera on Std CCTV pdf HDVC36FB Instructions 915Kb pdf
Order Code
Price (ex VAT)
Price (inc VAT)

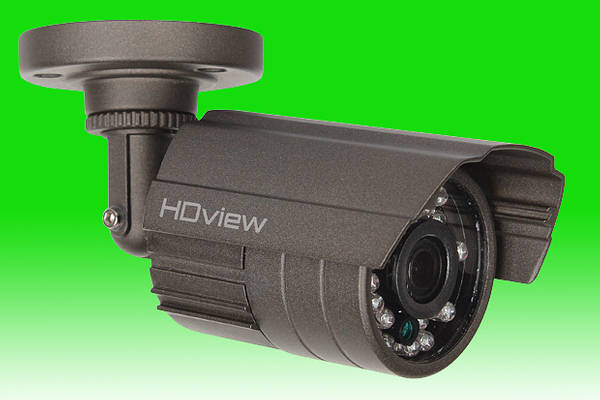

product photo


True 1.3MP 720P Bullet CCTV Camera - Black - 3.6mm - 20Mtr IR
