True 1.3MP 720P Dome CCTV Camera - Black - 3.6mm - 10Mtr IR (Discontinued)

Please try BNC CCTV Dome Cameras for alternative products.

True 1.3MP 720P Dome CCTV Camera - Black - 3.6mm - 10Mtr IR5060224101896HDVC36FD

Loading …

60mm x 56mm(H)
Weight: 250g
True 1.3MP 720P Dome CCTV Camera
3.6mm - 10Mtr IR
In addition to the 720P HD resolution the Hdview range of CCTV cameras
all feature the multi-function on screen display (OSD) settings.

Whilst in many situations you will find an ‘out of the box installation’ will give excellent results
the OSD settings will enable you to make adjustments to the cameras final output to
provide an excellent image in the most demanding situations.

Please read through this manual prior to
installation in order to better understand all the functionality of the product.
  • 3.6mm Fixed Lens
  • True High Definition 1.3MP Sony
  • AHD sensor
  • Built in 10m Infrared LED Illumination
  • D-WDR incorporating ATR
  • 2D and 3D Noise Reduction
  • Exposure Control
  • High Light Compensation
  • 3-Axis Cable Management Bracket
  • IP66 Weatherproof Bullet Housing
  • Pick up Element: 1/3" SONY CMOS
  • Effective Pixels: NTSC/ PAL:1280(H) x 720(V)
  • Horizontal Resolution: 720P
  • Minimum Illumination:
    0.1 Lux/F2.00
    0 Lux (with IR LED ON)
  • Scanning System: Progressive
  • Auto Electronic Shutter
    NTSC: BR>1/60s~1/100,000s,
    PAL: 1/50s~1/100,000s
  • Video Output: 1Vpp, 75O
  • Auto Gain Contro: l Auto
  • Power/Current: DC12V(+/-10%)/130mA


How to use AHD camera on Std CCTV pdf HDVC36FD Instructions 958Kb pdf
Product Code
Price (ex VAT)
Price (inc VAT)

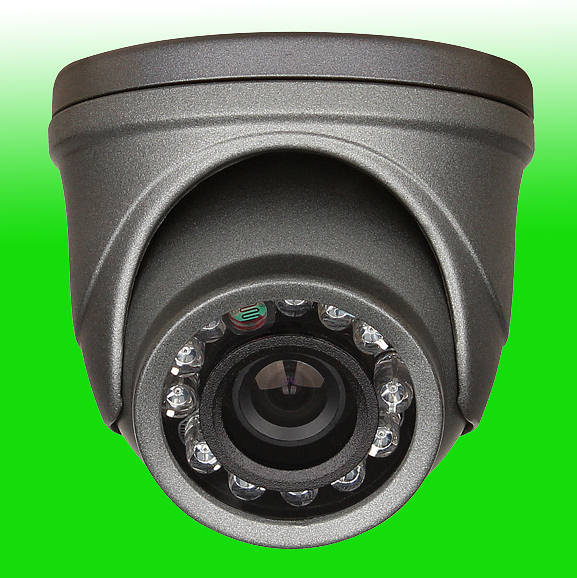

product photo
