True 1.3MP 720P Dome CCTV Camera - Black - 6mm - 22mm - 20 to 25Mtr IR5060224105566HDVC622VFD

Dimension - ?148 x 122(H) mm
True 1.3MP 720P Dome CCTV Camera - Black
6mm - 22mm - 20 to 25Mtr IR
In addition to the 720P HD resolution the Hdview range of CCTV cameras
all feature the multi-function on screen display (OSD) settings.

Whilst in many situations you will find an ‘out of the box installation’ will give excellent results
the OSD settings will enable you to make adjustments to the cameras final output to
provide an excellent image in the most demanding situations.

Please read through this manual prior to
installation in order to better understand all the functionality of the product.

This model features manual adjustment of zoom and focus.
The adjustments are located on the underneath of the camera.
  • 6 to 22mm Varifocal Lens
  • True High Definition 1.3MP Image Resolution
  • Built in 20-25m Infrared LED Illumination
  • D-WDR incorporating ATR
  • 2D and 3D Noise Reduction
  • Exposure Control
  • High Light Compensation
  • 3-Axis Cable Management Bracket
  • IP66 Weatherproof Bullet Housing
  • Technical Specification
  • Pick up Element - 1/3" SONY CMOS
  • Effective Pixels (H×V) - NTSC/ PAL:1280(H)x720V)
  • Horizontal Resolution - 720P
  • Minimum Illumination - 0.1 Lux/F1.6 / 0 Lux (with IR LED ON)
  • S/N Ratio - More than 58dB
  • Scanning System - Progressive
  • Synchronous System - Internal, Negative sync.
  • Auto Electronic Shutter - NTSC: 1/60s~1/100,000s,PAL: 1/50s~1/100,000s
  • Gamma Characteristic - 0.45
  • IR Distance – 20-25 Meters
  • IR Status - Under 10 Lux by CDS
  • IR Power On - CDS AUTO Control/ICR
  • Video Output - 1Vpp, 75O
  • Auto Gain Control - Auto
  • Power/Current - DC12V(+/-10%)/280mA
  • Lens – 6-22mm Manual Zoom Lens


TSHDVC622VFD_Manual 983Kb pdf
Order Code
Price (ex VAT)
Price (inc VAT)

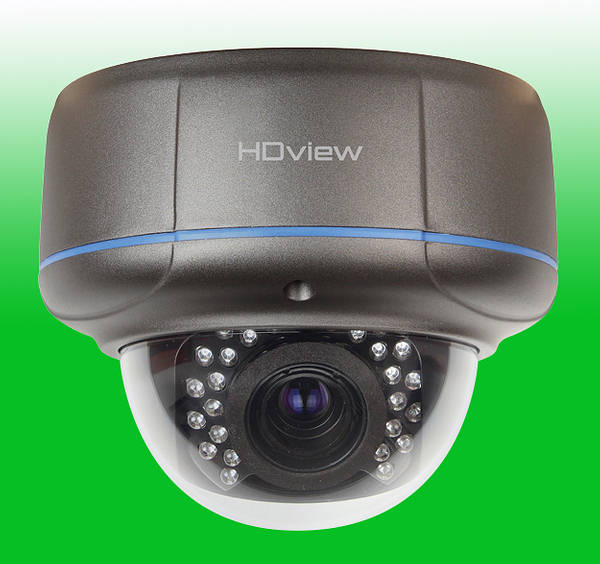

product photo


True 1.3MP 720P Dome CCTV Camera - Black - 6mm - 22mm - 20 to 25Mtr IR
