12m x 17m 12v PIR Pet Immune (36kg) c/w Bracket0886618219122IS312B

Wall/ceiling bracket supplied

Height - 86mm
Width - 57mm
Depth - 44mm
Honeywell

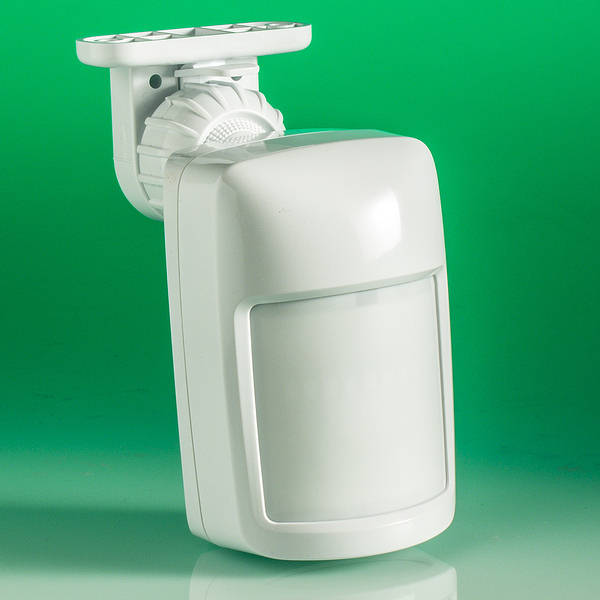

12 x 17m Compact PIR Motion Sensor with Pet-Immunity
c/w Wall/Ceiling Swivel Bracket
Designed with the installer in mind, this small form factor motion detector offers a trouble-free,
out of the box experience to simplify the install process and reduce install time.
With the passive infrared IS312, optimum performance is achieved using custom developed extended range Fresnel optics,
look down, cover tamper, and selectable pet immunity up to 36kg.
Leading edge sensing technologies and a wide range of models to suit the requirements of most applications.
  • Sleek, Sturdy Housing
  • Optics - Fresnel lens
  • Pet friendly Selectivity (up to 36kg)
  • Integrated Screw Retention Features
  • Uniform Sensitivity Optics
  • Wall-to-Wall Coverage
  • Superior Detection and False Alarm Immunity
  • Power - 9 – 15 VDC
  • Look Down Zone - Yes, selectable
  • Tamper – Front
  • Operating Temperature -10°C to 55°C
  • Temperature Compensation – Advanced Dual Slope
  • UV Protected Lens - Yes
  • PIR White Light Immunity - 2,000 Lux typical
  • Terminal – 6 Pin
  • Mounting bracket – Included (Wall or ceiling mount - setting: 0-32° right or left, 0-29° up, 0-25° down)
  • Agency Listing - EN50131-2-2 , Grade 2 , Class II, NF&A2P, 2 shields , PD6662:2010

Technical:

TSIS312B Instructions 2.2Mb pdf

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

TS IS312B

12m x 17m 12v PIR Pet Immune (36kg) c/w Bracket

EA

£7.95

EA

£9.54
