Karizma iD Alarm Panel with Keypad - Discontinued

Please try Burglar Alarm Systems for alternative products.

Karizma iD Alarm Panel with Keypad08SP174

Height: - 250mm
Width: - 350mm
Depth: - 76mm.

Height: - 150mm
Width: - 107mm
Depth: - 27mm.
Karizma iD Alarm Panel
The Karizma panel uses the well established iD system of sensing signals along two wires.
iD stands for Intelligent Device'.

Karizma can process from 1 - 30 signals from standard PIR's with iD fitted or contacts.
All devices can be run on a single 4 core cable ( max run 100 Mts between PIR's )
On a standard system without iD you would need up to 30 x 6 core cables .
Reduces cable runs, complexity and installation time.

The Karizma panel using iD can provide individual identification of every detector
on the system on a single 4 core cable including tamper.

Alarm Controls, Fire, Intruder, PA, PIR's and door contacts can now be mixed on the same cable.
  • NV Memory, All your programme information is safe even after a power failure.
  • 7 User codes, 100 event log
  • All zones are programmable: 9 Options Exit / Entry, Walk through, P / A, Silent P / A, 24 Hour tamper, Fire and intruder.
  • With chime and non omit features.
  • User friendly 7 segment displays all reports and logs.
  • Communicator or Red Care STU Options.
  • Conforms to British standard, Insurance and NACOSS requirements.
  • BS4737 Full specification parts 1 and 2
  • Supplied with remote keypad TS KKP. ( max 4 per system )


Specification / Installation / Operating Manual
Order Code
Price (ex VAT)
Price (inc VAT)

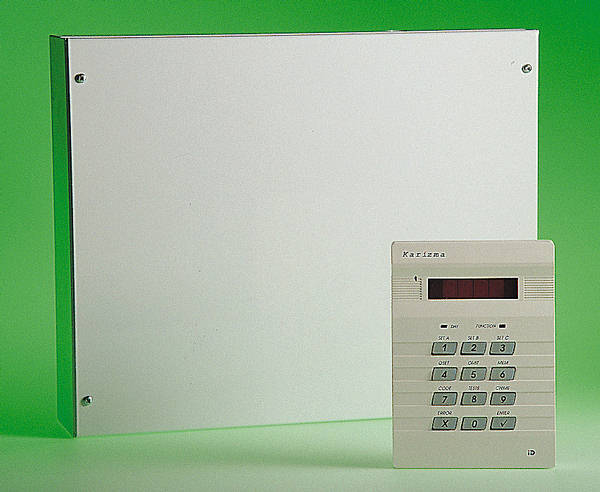

product photo


Karizma iD Alarm Panel with Keypad


EA 3+




EA 3+
