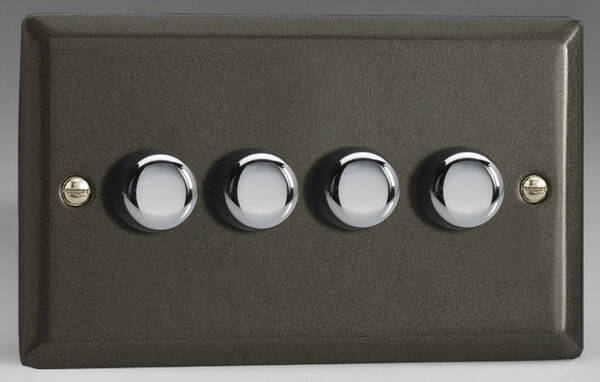

4 Gang 250w 2 Way V-DIM Push on/off Rotary Dimmer Switch - Graphite5021575350449HP44
Loading …
Minimum Load - 40 watts
4 Gang 2 Way 4 x 250w Dimmer - Graphite
Standard Dimmers (V-Dim) - for Mains and Low voltage lamps
Not for use with Fluorescent Lighting
for 1 or 2 way circuits with Push On / Push Off and Rotary Dimming
- Manufactured and designed in the UK
- 100% tested and inspected
- Fully compliant with British Safety Standards
- Top quality high current components for extremely long-life
- Fully Guaranteed
- Low noise operation
- Models available for very high wattages
- Leading Edge Dimmer
-
Suitable for
Incandescent GLS Lamps
Candle, Golf Ball etc
Lv Dichroic Lamps & Electronic Transformers
Mains Halogen (GU10 Etc)
Varilight Dimmable CFL
Leading Edge Dimming Loads - Not Suitable for
Wire Wound Low Voltage (or other inductive Load)
Other Dimmable CFL (subject to manufacturers Guidelines)
Dimmable Mains LED
Dimmable Ballast
Fluorescent Tubes
Very low wattage loads
Trailing Edge Dimming Loads
Technical:Dimmer Selection Guide .PDF (200kb) Dimmer Instructions - pdf 37kb FAQ - Trouble Shooting |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VL HP44 | 4 Gang 250w 2 Way V-DIM Push on/off Rotary Dimmer Switch - Graphite |
|
|
Accessories, Boxes and Grommets
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VL SM | Switch Only Module (2 way) for Dimmers - Push-On/Off |
|
|
|||||||||
 |
WD 328PW | DeWalt Wall-Dog 32mm x 8mm Pan Head - White |
|
|
|||||||||
 |
WD 328PC | DeWalt Wall-Dog 32mm x 8mm Pan Head - Chrome |
|
|
|||||||||
 |
AP 665 | 2 Gang 25mm KO Flush Box |
|
|
|||||||||
 |
AP 625 | 2 Gang 35mm KO Flush Box |
|
|
|||||||||
 |
GR 20 | 20mm Open Grommets |
|
|
|||||||||
 |
MT MDLB2 | 2 Gang 35mm Dry Lining / Plasterboard Box |
|
|
|||||||||
 |
FB 4235 | 2 Gang 35mm Fire & Acoustic Metal Dry Lining Plasterboard Box |
|
|
