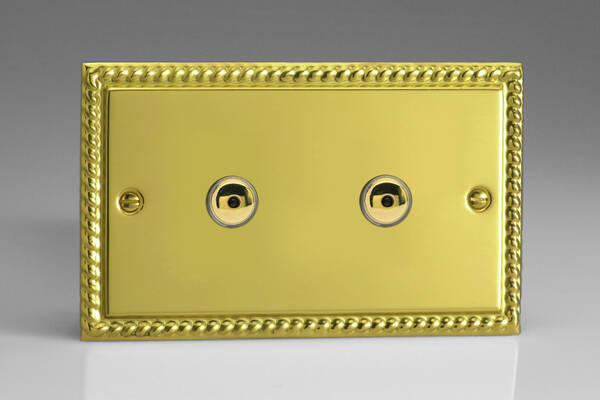

Name: 2 Gang 600w V-PLUS IR Master Remote Dimmer (Twin Plate) - Georgian Brass
Brand: Varilight
SKU: VLIG1602
Price: 41.28 GBP
Availability: Discontinued

2 Gang 600w V-PLUS IR Master Remote Dimmer (Twin Plate) - Georgian Brass (Discontinued)

Please try Dimmer Switches for alternative products.

2 Gang 600w V-PLUS IR Master Remote Dimmer (Twin Plate) - Georgian Brass

Product Code: VL IG1602

5021575540628

IGI602M

Loading …

V-PLUS IR Dimmer Range

Min Box Depth: 25mm

Min Load: - 40 watts
Max Load: - 600 watts
per gang

EACH	3+
£34.40	£33.25

EACH	3+
£41.28	£39.90

Quantity

Discontinued

Description

Georgian Brass
2 Gang 600w V-PLUS IR Master Remote Dimmer (Twin Plate)

A revolutionary new range of touch and remote control dimmer switches.

A touch sensitive button in the centre of the plate and a tiny lens in the centre of the button
so as to not spoil the overall look of the product.

You can dim the lights using touch control or remotely .
The master dimmer switches are one way but can be used in conjunction with slave units
in a multi-way circuit (including intermediate and 2 way)
so that the lights can be dimmed from more than one location.

In this type of circuit you should use one master dimmer and any number of slave units
with three wires directly connecting each switch (as is usual in a 2 way circuit).

The low-priced slave units are not dimmer switches
and cannot be used on their own without a master dimmer.

SUITABLE FOR
Mains voltage Halogen, GLS or candle bulbs
Good quality dimmable electronic low voltage transformers
NOT SUITABLE FOR
Fluorescent bulbs and tubes
Wire-wound or toroidal transformers
Electric motors
Dimmable LED Lighting for dimmable LED Lighting select a dimmer from the V-PRO series

Like the IQ dimmers it also has a soft start to extend lamp life and overload protection with automatic reset.
In learning mode, it can be taught any button of most existing infra-red remote controllers.
Using trailing edge technology, they can be used for mains or low voltage lighting.
Remote control sold separately
(Full clear instructions with diagrams are included with the product)

V-PLUS IR Dimmer Range

Min Box Depth: 25mm

Min Load: - 40 watts
Max Load: - 600 watts
per gang

Technical
