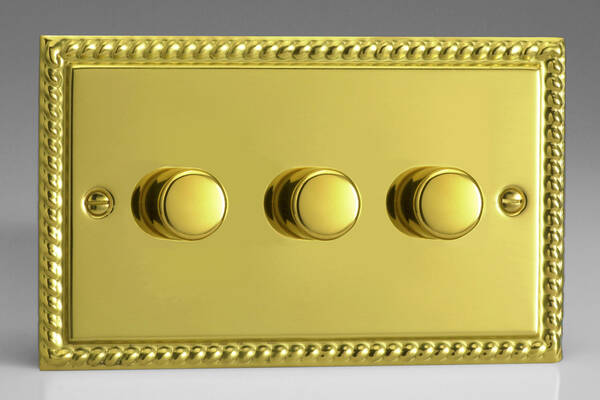

3 Gang 120W V-PRO Silent LED Dimmer (Twin Plate) - Georgian Brass
Product Code: VL JGDP303
5021575541052
JGDP303
Loading …
Min Box Depth: 35mm
Per Gang
LED's
Min Load: 0 watts LED
Max Load: - 120 watts
Max Halogen Load: - 200 watts
Max Incandescent Load 250 watts
Georgian Brass
3 Gang 120w 2 Way V-PRO Silent Trailing Edge LED Dimmer
3 Gang 120w 2 Way V-PRO Silent Trailing Edge LED Dimmer
Our most versatile dimmer switch.
High quality UK design and manufacture.
Trailing edge for smooth, totally silent dimming.
Intelligent detection of the lamp type for adaptive control of most loads.
Overload protection. Superb performance with most dimmable LED lamps.
Soft start and gentle waveform to considerably extend lamp life
- Soft start to extend lamp life Saves energy
- Steps down output under partial overload,
- Switches off under gross overload, protecting components and extending product life.
- Normal operation resumes once load is corrected.
- iQ intelligent control of awkward loads
- Push-on / Push-off 2 Way switching
- Specifically for use on the primary circuit of low voltage lighting transformers.
- Any combination of transformers up to the maximum rating may be connected
- Automatic self-resetting overload protection
- Automatic self-resetting thermal protection
- How to Program Varilight V-Pro Dimmers
-
Suitable for
Incandescent GLS Lamps
Candle, Golf Ball etc
12V Dichroic lamps (best with Telco premium low voltage transformers)
Mains Halogen (GU10 Etc)
Varilight Dimmable CFL
Leading Edge Dimming Loads
Trailing Edge Dimming Loads
Other Dimmable CFL (subject to manufacturers Guidelines)
Dimmable Mains LED
Very low wattage loads - Not Suitable for
Dimmable Ballast
Fluorescent Tubes
Wire Wound Low Voltage (or other inductive Load)
TRIAC dimmable drivers (Choose V-COM series dimmers)
Min Box Depth: 35mm
Per Gang
LED's
Min Load: 0 watts LED
Max Load: - 120 watts
Max Halogen Load: - 200 watts
Max Incandescent Load 250 watts
| British Made - |
Technical:Dimmer Selection Guide - pdf 180k V-PRO Instructions - pdf 180k VLJGDP303 Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
VL JGDP303
3 Gang 120W V-PRO Silent LED Dimmer (Twin Plate) - Georgian Brass |
