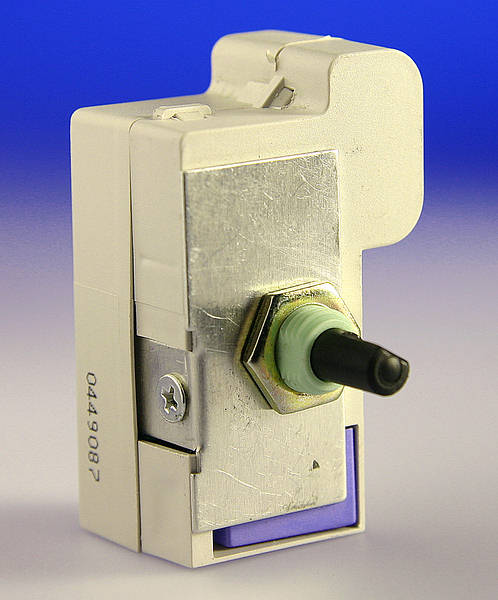

300w 2 way V-PLUS IQ Push on/off Rotary Dimmer Switch Module
Product Code: VL MOD300
5021575960341
Z0IP302/19DT
Loading …
Spindle 6mm with flat edge
Hole Size 10mm
Max Width: 35mm
Max Height: 57mm
Body Depth: 25mm
Minimum Load - 40 watts
Hole Size 10mm
Max Width: 35mm
Max Height: 57mm
Body Depth: 25mm
300w 2 way V-PLUS
IQ Dimmer Module
IQ Dimmer Module
These “IQ” dimmers are microprocessor controlled and benefit form the following features:
They fully comply with European safety legislation (BSEN 60669-2-1)
and handle overload situations by stepping down its output to the lamps until the load is reduced.
These dimmers are suitable for all applications requiring a leading edge dimmer.
The output from the dimmer switch is extremely gentle on the load and they are soft-start, thus extending lamp life considerably.
These dimmer switches are suitable for many types of load (subject to lamp/transformer manufacturers guidelines).
They can be used for:
Incandescent GLS lamps
12V Dichroic lamps (best with Telco premium low voltage transformers)
Mains Halogen lamps (GU10 etc)
Varilight dimmable low-energy CFL lamps
Wire-wound transformers
One dimmer for either mains or low voltage transformer loads
- Soft start to extend lamp life Saves energy
- Steps down output under partial overload,
- Switches off under gross overload, protecting components and extending product life.
- Normal operation resumes once load is corrected.
- iQ intelligent control of awkward loads
- Push-on / Push-off 2 Way switching
- Specifically for use on the primary circuit of low voltage lighting transformers.
- Any combination of transformers up to the maximum rating may be connected
Spindle 6mm with flat edge
Hole Size 10mm
Max Width: 35mm
Max Height: 57mm
Body Depth: 25mm
Minimum Load - 40 watts
Hole Size 10mm
Max Width: 35mm
Max Height: 57mm
Body Depth: 25mm
Technical:V-PLUS IR Instructions - pdf 180k FAQ - Trouble Shooting |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
VL MOD300
300w 2 way V-PLUS IQ Push on/off Rotary Dimmer Switch Module |
