Compact Push Wire Connector 2.5mm 3 Pole40508210278502273-203
Loading …

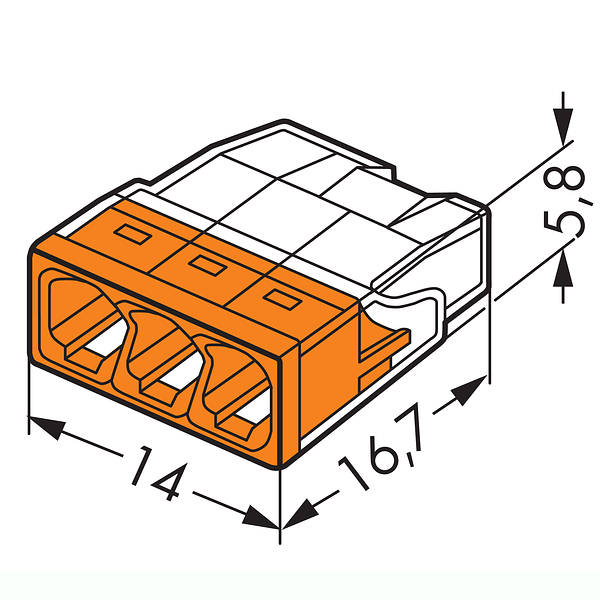

Dimension
Height 5.8mm
Width 14mm
Depth 16.7mm
Wago 2273-202 Compact Transparent
3 Pole Push Wire Connector - Orange Cover
0.5mm² - 2.5mm² Solid
3 Pole Push Wire Connector - Orange Cover
0.5mm² - 2.5mm² Solid
COMPACT connector for junction boxes 3 conductor terminal blocks
Simply pushing the stripped conductor into the connector makes the connection.
The transparent housing provides a visible indication that the conductor is secure.
There is a test point in the base of the housing.
To remove the connector simply pull on the conductor whilst twisting the connector block left and right.
The connector can then be reused.
Simply pushing the stripped conductor into the connector makes the connection.
The transparent housing provides a visible indication that the conductor is secure.
There is a test point in the base of the housing.
To remove the connector simply pull on the conductor whilst twisting the connector block left and right.
The connector can then be reused.
- Number of Ports : 3
- Colour : Orange
- Weight : 1.0g
- Conductor sizes : 0.5mm² - 2.5mm² Solid Core.
- Single pole commoning terminal
- Connection method : PUSH WIRE®
- Current rating : 24A
- Voltage rating : 0 - 450V / 4KV
- Approvals : ENEC
Technical:Data Sheet- 850kb pdf |
Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
WA 203
Compact Push Wire Connector 2.5mm 3 Pole
per 10 |
per 100 |
|---|---|
£2.10 |
£11.00 |
per 10 |
per 100 |
|---|---|
£2.52 |
£13.20 |
