Compact Push Wire Connector 2.5mm 5 Pole40508210278742273-205

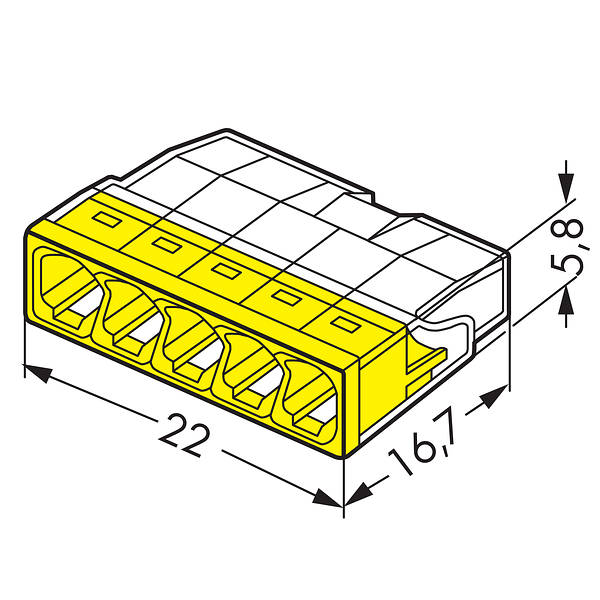

Dimensions
Height 5.8mm
Width 22mm
Depth 16.7mm
Wago 2273-205 Compact Transparent
5 Pole Push Wire Connector - Yellow Cover
0.5mm² - 2.5mm² Solid
COMPACT connector for junction boxes 5 conductor terminal blocks

Simply pushing the stripped conductor into the connector makes the connection. The transparent housing provides a visible indication that the conductor is secure.

There is a test point in the base of the housing.
To remove the connector simply pull on the conductor whilst twisting the connector block left and right.
The connector can then be reused.
  • Number of Ports : 5
  • Colour : Yellow
  • Weight : 1.6g
  • Conductor sizes : 0.5mm² - 2.5mm² Solid Core.
  • Single pole terminal
  • Connection method : PUSH WIRE®
  • Current rating : 24A
  • Voltage rating : 0 - 450V / 4KV
  • Approvals : ENEC

Technical:

Data Sheet- 850kb pdf

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

WA 205

Compact Push Wire Connector 2.5mm 5 Pole

per 10

per 100

£2.70

£13.50

per 10

per 100

£3.24

£16.20
