Wago 221 Compact Lever Splicing Connector 4.00mm - 10 Way
Product Code: WA 420C
4066966611663
221-420
Loading …
Loading …
Wago 221 Compact Series
Compact Lever Splicing Connector
4mm² - 10 Way
Compact Lever Splicing Connector
4mm² - 10 Way
10 conductor terminal block; with operating levers;
Max. operating temperature 85°C
The WAGO 221 Series compact lever connector allows fast wiring for solid,
stranded & flexible conductors safely due to CAGE CLAMP® connection
Suitable applications:
Lighting, Power, HVAC & many more
- CAGE CLAMP® connection, re-usable
- Up to 4mm²
- Continuous service temp: max 105°C
- Suitable for all wire types
- 100% transparent housing
- Voltage: 240/450V
- Current: 32A
- Connect: 10 Cables
- Colour: Transparent / Orange
- Cable size [mm²]
Solid - [mm²] 0.2 – 4.0mm²

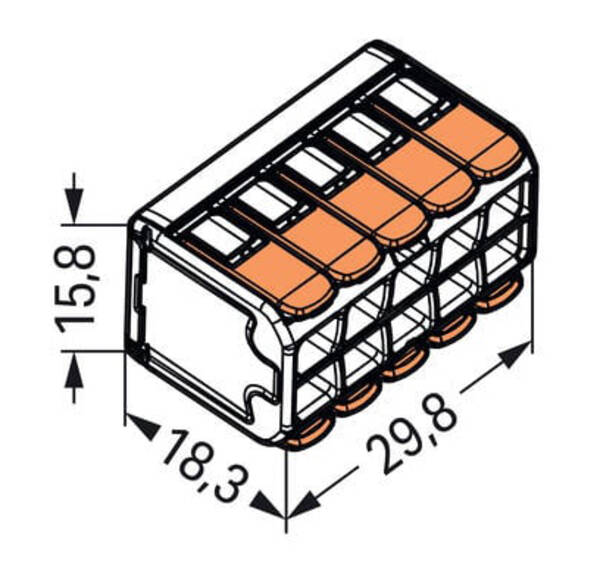

Stranded - [mm²] 0.2 - 4.0mm² - Height: 15.8mm
Width: 29.8mm
Depth: 18.3mm - Strip length: 11mm
Technical:WA420C Datasheet - 250kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WA 420C
Wago 221 Compact Lever Splicing Connector 4.00mm - 10 Way |
