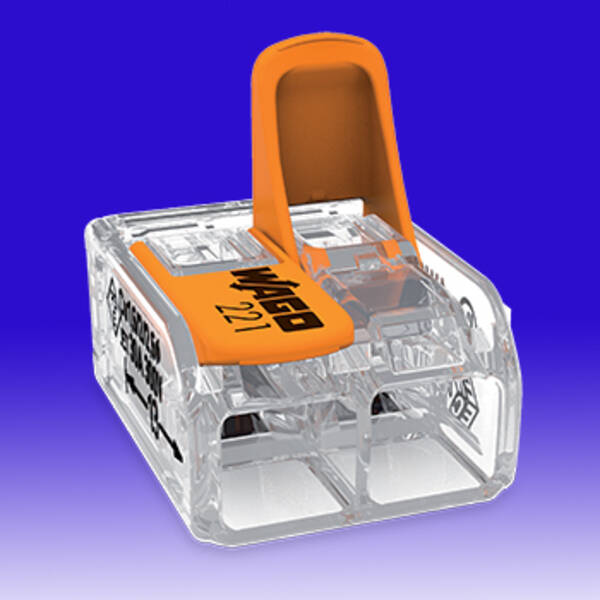

Wago 221 Compact Lever Splicing Connector 6.00mm - 2 Pole
Product Code: WA 612C
4055143704168
221-612
Loading …
Wago 221Compact Series
Compact Lever Splicing Connector
6mm² - 2 Way
Compact Lever Splicing Connector
6mm² - 2 Way
2 conductor terminal block; with operating levers;
Max. operating temperature 85°C
The WAGO 221 Series compact lever connector allows fast wiring for solid,
stranded & flexible conductors safely due to CAGE CLAMP connection
Suitable applications:
Lighting, Power, HVAC & many more
- CAGE CLAMPR® connection, Re-usable
- Up to 6mm²
- Continuous service temp: max 105°C
- Suitable for all wire types
- 100% Transparent housing
- Voltage: 240/450v
- Current: 41 A
- Connect: 2 Cables
- Colour: Transparent / Orange
- Cable size [mm²]
Solid - [mm²] 0.5 – 6.0 mm²

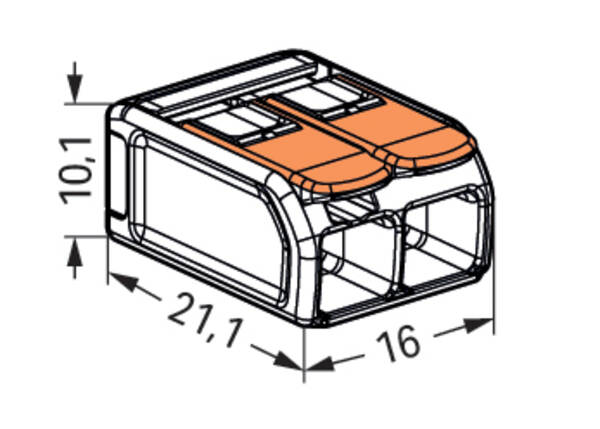

Stranded - [mm²] 0.5 - 6.0 mm² - Height: 10 mm
Width: 16 mm
Depth: 21 mm - Strip length: 12mm - 14mm
Technical:WA612C Data Sheet- 727kb pdf |
|
