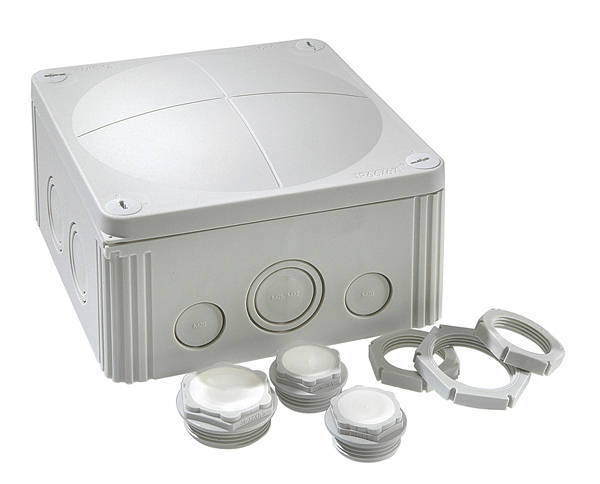

57 Amp Wiska 1010 Junction Box 140 x 140 x 82mm - Grey IP66/6740076856070321010/5 Grey

Loading …

Terminal Cable Capacity

8 x 4.0mm
6 x 6.0mm
3 x 10.0mm

Optional Magic Sealing Gel
The sealing technique ensures a high life expectancy even under permanent influence of moisture

IP 68 up to a water depth of 15 meters according to DIN EN 60529

Description

Wiska Box - IP66
140 x 140 x 82mm - Grey
57 Amp

Captive quick release screws that can't be lost.
The quick-release lid screws made of plastic will not rust and stay
securely in place just where they belong - in the WISKA COMBI Box.

Good to look at
The 'Designer Box'. The WISKA COMBI with its unmistakeable
'bellied' lid provides the utmost in visual and functional perfection.
Now you can install with system AND with style.

Waterproof junction box up to 10 mm2 (57A)
140 x 140 x 82 mm
10 knockout entries at the side (5 x M25/32, 2 x M20, 3 x M20/25)
4 knockout entries (2 x M25/32, 2 x M20/25) in the base
3 x self-sealing cable inlets while using QUIXX cable entries (IP66/67)
- incl. self-sealing membrane screws QUIXX, 2 x M25, 1 x M32
4 quick-release lid screws in the cover
Fixing with internally located openings out of the sealing area
includes 5-pole screw terminal 10mm2 (patented)

10% more room inside, thanks to the bellied cover
Captive quick-release lid screws
Strong
Stable, safe and secure. The WISKA COMBI with its high IP 66 Degree of Protection is weather-proof, impact-resistant and shatter-proof. Eminently suitable for extreme conditions or for outdoor installations.
All WISKA COMBI Boxes are flame-retardant, halogen free, and are highly resistant to animal or vegetable fats, mineral oil, diesel, weak acids, strong and weak alkaline solutions, or alcohol.

Technical

IP Rating Chart

Technical:

IP Rating Chart

WK 1010G

57 Amp Wiska 1010 Junction Box 140 x 140 x 82mm - Grey IP66/67

EACH	3+
£14.60	£13.30

EACH	3+
£17.52	£15.96

Accessories and Grommets

EK 255B

32mm Nylon Compression Gland Black for Cable 18-24mm²

EACH	10+	50+
£1.30	£1.20	£1.15

EACH	10+	50+
£1.56	£1.44	£1.38

CO 32LN

32mm Black Enamel Locknuts

EACH	10+
£0.26	£0.18

EACH	10+
£0.31	£0.22

EK 254B

25mm Nylon Compression Gland Black for Cable 12-18mm²

EACH	10+	50+
£0.98	£0.87	£0.76

EACH	10+	50+
£1.17	£1.04	£0.91

EK 253B

25mm Nylon Compression Gland Black for Cable 8-13mm²

EACH	10+	50+
£0.75	£0.65	£0.54

EACH	10+	50+
£0.90	£0.78	£0.65

EK 94B

25mm Nylon Lock Ring - Black

EACH	10+
£0.22	£0.17

EACH	10+
£0.26	£0.21

EK 252B

20mm Nylon Compression Gland Black for Cable 8-13mm²

EACH	10+	50+
£0.54	£0.43	£0.38

EACH	10+	50+
£0.64	£0.52	£0.46

EK 251B

20mm Nylon Compression Gland Black for Cable 7-10mm²

EACH	10+	50+
£0.54	£0.42	£0.38

EACH	10+	50+
£0.65	£0.50	£0.46

EK 249B

20mm Nylon Compression Gland Black for Cable 4-7mm²

EACH	10+
£0.30	£0.28

EACH	10+
£0.36	£0.34

EK 93B

20mm Nylon Lock Ring - Black

EACH	10+
£0.11	£0.09

EACH	10+
£0.13	£0.10

WK P20F115

20mm Entry Gland for 1 & 1.5mm Flat T & E - IP68

EACH	5+
£0.70	£0.60

EACH	5+
£0.84	£0.72

WK P20F254

20mm Entry Gland for 2.5 & 4mm Flat T & E

EACH	5+
£0.70	£0.60

EACH	5+
£0.84	£0.72

WK P25F2X25

25mm Entry Gland for 2 x 2.5mm Flat T & E

EACH	5+
£0.99	£0.80

EACH	5+
£1.19	£0.96

WK P25F6

25mm Entry Gland for 6mm Flat T & E

EACH	5+
£0.99	£0.80

EACH	5+
£1.19	£0.96

WK P32F1016

32mm Entry Gland for 10 & 16mm Flat T & E

EACH	5+
£1.65	£1.40

EACH	5+
£1.98	£1.68

WK MF210

Magic Gel (210g/ml) - IP68

EACH
£12.45

EACH
£14.94

WK MG1

Magic Gel (2x500ml) - IP68

EACH
£27.90

EACH
£33.48
