20mm Compression Gland LSF + Locknut for Cable 7.5-14mm² - Black (10 Pack)400768504776010100612

Loading …

Dimensions

Wiska

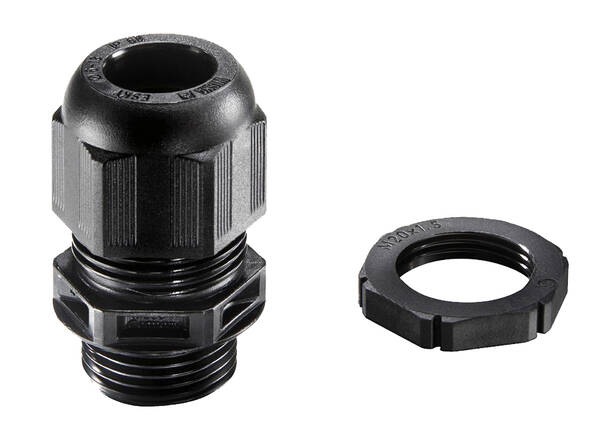

20mm IP68 Compression Gland LSF c/w Locknut- Black
(10 Pack)
Product Colour - RAL 9005.

Order no. RAL 9005 - 10100612.

Type - GLP20+ Black.

Pack of 10

Protection class: IP69, IP68 (5 bar 30 min).
  • Dimensions
  • Length screw-in thread (L): 10mm.
  • Collar diameter ( E ): 27mm.
  • Total length (TL): 36mm - 45mm.
  • Ø Connection thread ( D ): 20mm.
  • Nut Size ( SW ): 24mm.
  • Ø cable diameter min: 7,5mm.
  • Ø cable diameter max: 14mm.
  • Material cable gland: Polyamide.
  • Material sealing gasket: EPDM.
  • Glow wire test: 750°C.
  • Type of cable anchorage: A.
  • Temp. range min: -40°C.
  • Temp. range max: 100°C.
  • Install. torques fitting: 4 N m.
  • Install. torques cap nut: 3 N m.

Technical:

Wiska Comparison Sheet Datasheet 300kb

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo
WK GLP20B

20mm Compression Gland LSF + Locknut for Cable 7.5-14mm² - Black (10 Pack)
