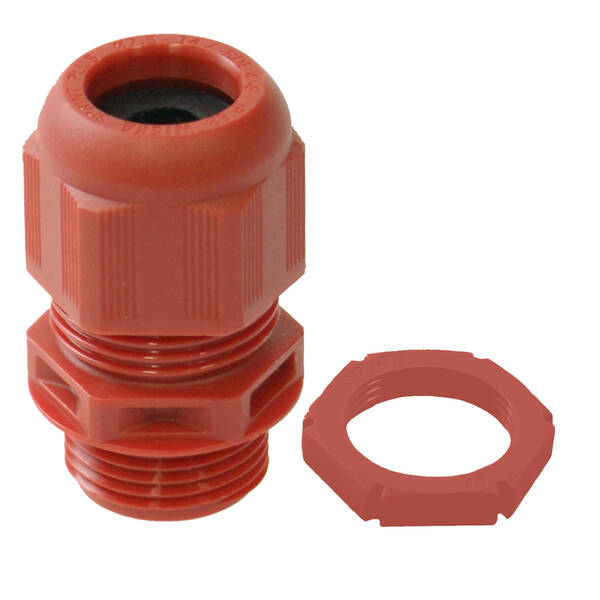

20mm Compression Gland LS0H + Locknut for Cable 7.5-14mm - Red (10 Pack)
Product Code: WK GLP20R
4007685005203
10100614
Loading …
Dimensions
Wiska
20mm IP68 Compression Gland LS0H c/w Locknut - Red
(10 Pack)
20mm IP68 Compression Gland LS0H c/w Locknut - Red
(10 Pack)
Product Colour - RAL 3000.
Order no. RAL 3000 - 10100614.
Type - GLP20+ Red.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min)
Order no. RAL 3000 - 10100614.
Type - GLP20+ Red.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min)

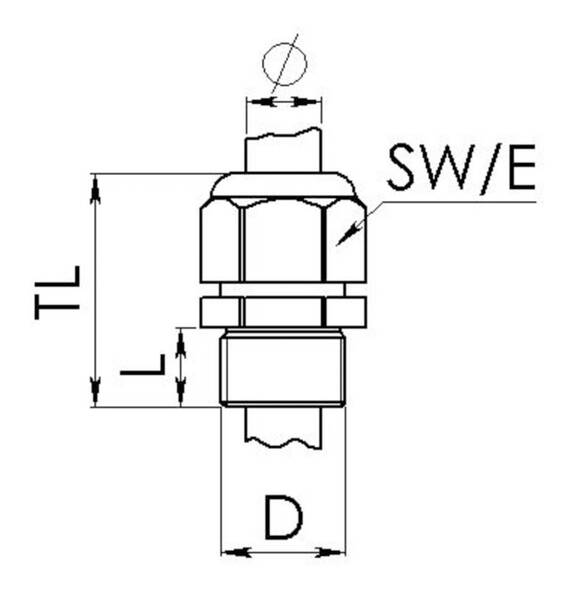

- Dimensions
- Length screw-in thread (L): 10mm.
- Collar diameter ( E ): 27mm.
- Total length (TL): 36mm - 45mm.
- Ø Connection thread ( D ): 20mm.
- Nut Size ( SW ): 24mm.
- Ø cable diameter min: 7,5mm.
- Ø cable diameter max: 14mm.
- Material cable gland: Polyamide.
- Material sealing gasket: EPDM.
- Glow wire test: 750°C.
- Type of cable anchorage: A.
- Temp. range min: -40°C.
- Temp. range max: 100°C.
- Install. torques fitting: 4 N m.
- Install. torques cap nut: 3 N m.
Technical:Wiska Comparison Sheet Datasheet 200kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WK GLP20R
20mm Compression Gland LS0H + Locknut for Cable 7.5-14mm - Red (10 Pack) |
