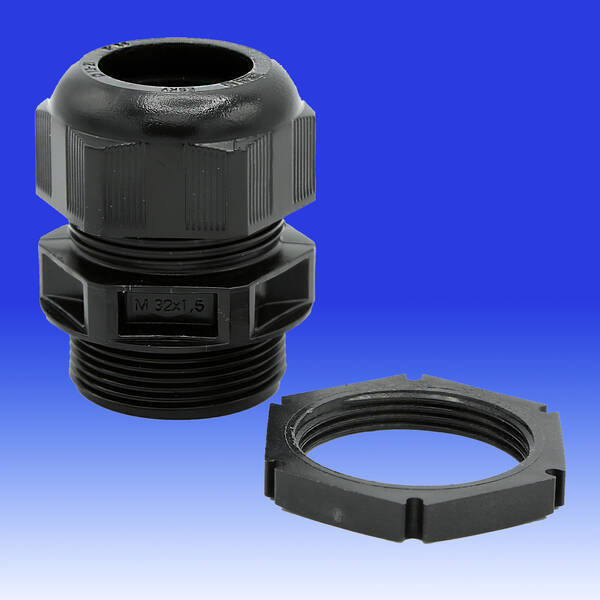

32mm Compression Gland LS0H + Locknut for Cable 13-21mm - Black (10 Pack)
Product Code: WK GLP32B
4007686025293
99709
Loading …
Dimensions
Wiska
32mm IP68 Compression Gland LS0H c/w Locknut - Black
(10 Pack)
32mm IP68 Compression Gland LS0H c/w Locknut - Black
(10 Pack)
Product Colour - RAL 9005.
Order no. RAL 9005 - 10106658.
Type - GLP32 Black.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min).
Order no. RAL 9005 - 10106658.
Type - GLP32 Black.
Pack of 10
Protection class: IP69, IP68 (5 bar 30 min).
- Dimensions
- Length screw-in thread (L): 12mm
- Collar diameter ( E ): 40mm
- Total length (TL): 42mm - 51mm
- Ø Connection thread ( D ): 32mm
- Nut Size ( SW ): 36mm
- Ø cable diameter min: 13mm
- Ø cable diameter max: 21mm
- Material cable gland: Polyamide
- Material sealing gasket: EPDM
- Glow wire test: 750°C
- Type of cable anchorage: A
- Temp. range min: -40°C
- Temp. range max: 100°C
- Install. torques fitting: 15N/m
- Install. torques cap nut: 4N/m
Technical:WKGLP32B Datasheet - 220kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WK GLP32B
32mm Compression Gland LS0H + Locknut for Cable 13-21mm - Black (10 Pack) |
