Wiska KonnektIT Connection Box
Product Code: WK KBOX
5056481900716
10112454 / WKKBOX
Loading …
Wago connectors not included
Wago connectors not included
Easy closing lid
100mm x 52mm x 35mm
Wiska
KonnektIT Connection Box
KonnektIT Connection Box

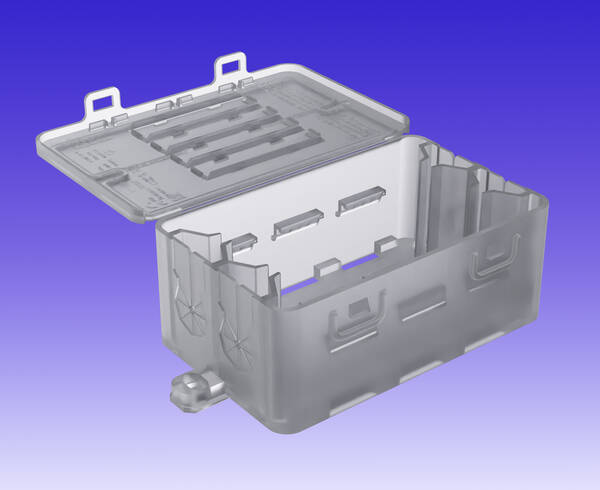

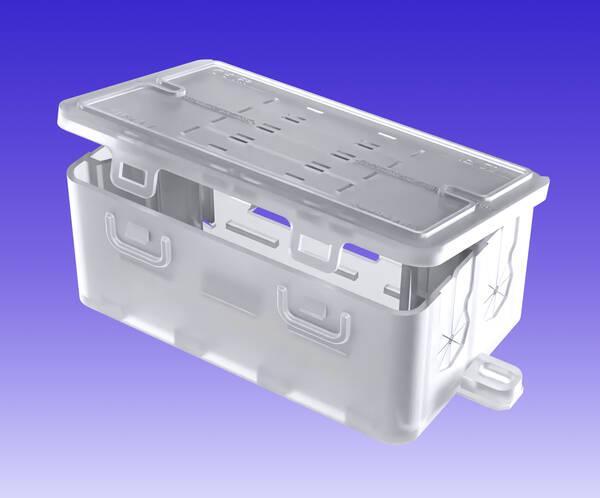

The KonnektIT is an innovative take on the standard connection box. This clever box is maintenance free, offers secure cable retention through it’s unique entry gates, gives IP20 protection and features an easy closing lid which is quick and simple to use.

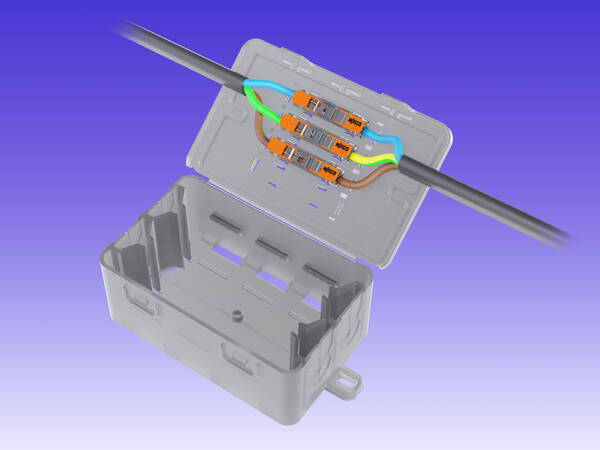

It comes with a range of terminal apertures, including those suitable for WAGO 221 and WAGO Inline connectors that simply click into place inside the box (221’s in the inner side walls and inline in the lid) ensuring a secure, tidy and professional finish to your installation.
The KonnketIT offers strain relief through its unique cable entry. The cable entry applies pressure to the cable, ensuring a firm hold and excellent strain relief for maximum protection.
It comes with a range of terminal apertures, including those suitable for WAGO 221 and WAGO Inline connectors that simply click into place inside the box (221’s in the inner side walls and inline in the lid) ensuring a secure, tidy and professional finish to your installation.
The KonnketIT offers strain relief through its unique cable entry. The cable entry applies pressure to the cable, ensuring a firm hold and excellent strain relief for maximum protection.
- 32A
- IP20 rated
- Secure cable retention
- External fixing lugs
- Easy closing lid
- Maintenance free (BS5733)
- Transparent polypropylene casing - Halogen free
- Glow wire test: 750°C
100mm x 52mm x 35mm
Technical:Brochure - 1.16mb pdf WKKBOX Datasheet - 180kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WK KBOX
Wiska KonnektIT Connection Box |
Wago 221-2411 Compact Inline Lever Connector
Loading …
WA 2411
WA 2503
WA WBP
See product for Accessories
Wago 221-2411
Compact Inline Lever Connector
Compact Inline Lever Connector
Inline splicing connector with lever;
for all conductor types; max. 4 mm²; 2-conductor; transparent housing;
Transparent cover;
4mm²* / 32A - *max 2.5mm² conductor size when using 7-stranded conductors.
for all conductor types; max. 4 mm²; 2-conductor; transparent housing;
Transparent cover;
4mm²* / 32A - *max 2.5mm² conductor size when using 7-stranded conductors.
| See product for Accessories |
Technical:WA2503 Data Sheet- 351Kb pdf WAWBP Datasheet - 240kb pdf Instructions - 60kb pdf |
|
