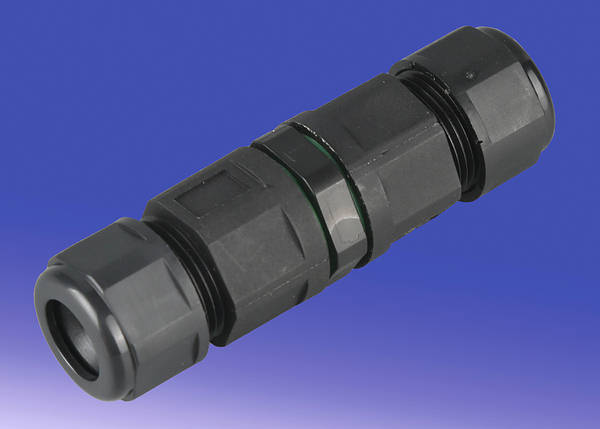

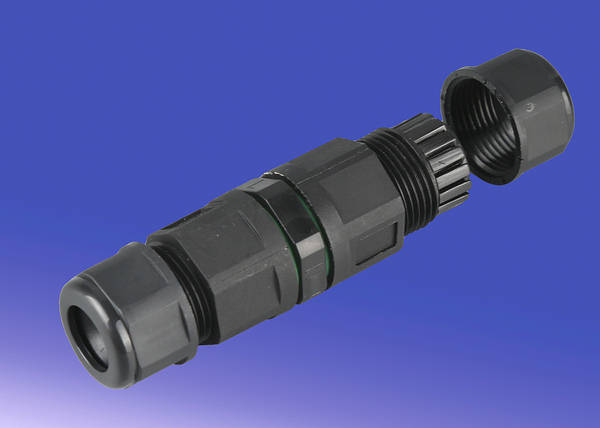

IP68 Straight Waterproof Connector 3 Pole
Product Code: WP QC1
5055800106532
WPQC1 / XY173P
Loading …
25.5x25.5x90mm
30x30 x95mm
Wire Size: 0.75-2.5mm
Cable Outer Diameter: min. 5mm - max.11mm
Telco
IP68 Straight
Waterproof Connector 3 Poles
IP68 Straight
Waterproof Connector 3 Poles
IP68 Straight Waterproof Connector, 3 poles, no screws
- Housing Material: PA66
- Contacts material/plating: brass
- Silicon Sealing Gasket
- Rated Voltage: 250V
- Rated Current: 16A
- Waterproof Rate: IP68
- Fire Rating: UL94 - V0
- Gland size: M22
- Operating Temperature: -40 ~ +85 C
- Warranty: 3 Years
25.5x25.5x90mm
30x30 x95mm
Wire Size: 0.75-2.5mm
Cable Outer Diameter: min. 5mm - max.11mm
Technical:WPQC1 Instructions 1500Kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WP QC1
IP68 Straight Waterproof Connector 3 Pole |
