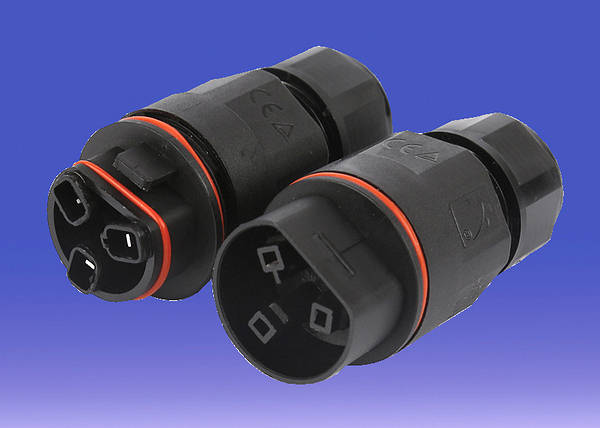

IP68 Plug & Socket Waterproof Connector 3 Pole (Screwless)5055800106549WPQC2 / XY22F3P

Loading …

Dimensions:
Wire Size: 0.75-2.5mm
Cable Outer Diameter: min. 6mm - max. 11mm
Telco
IP68 Plug & Socket
Waterproof Connector 3 Poles
IP68 Plug & Socket Waterproof Connector, 3 poles, no screws
  • Housing Material: PA66
  • Contacts material/plating: brass
  • Silicon Sealing Gasket
  • Rated Voltage: 250V
  • Rated Current: 16A
  • Male & Female Waterproof Connectors
  • Waterproof Rate: IP68
  • Fire Rating: UL94 - V0
  • Gland size: M22
  • Operating Temperature: -40 ~ +85 C
  • Warranty: 3 Years

Technical:

WPQC2 Instructions 1.7Mb

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo
WP QC2

IP68 Plug & Socket Waterproof Connector 3 Pole (Screwless)
