Xpelair WX12 Wall Extractor Fan501356292504492504AW

Loading …

Face Plate
Height; - 476mm
Width: - 473mm
Depth: - 18mm

Wall Depth:
Min: - 167mm
Max: - 522mm

Max Wattage: 85w
Xpelair WX12 Fan
12 inch Built-in Wall Fan


Commercial wall fans with ‘safe lock’ metal telescopic wall liner

WX commercial duty wall fans are designed for pubs, restaurants, offices, kitchens, factories, schools and shops. Suitable for single, cavity brick and timber frame walls.
The low profile white fascia is styled to blend in cleanly with commercial surroundings.
For safety, a finger-guard is integrated into the ultra slim high gloss ABS fascia and the exterior wall grille design.

On WX9 and WX12 units a positive plug and socket assembly provides a means of isolation.
All WX models come complete with a wall mounting kit which includes a ‘safe lock’ metal telescopic wall liner.

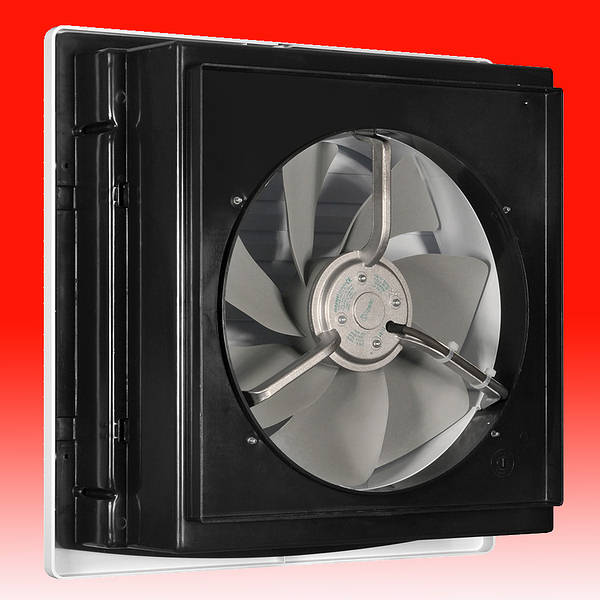

Both the WX9 and WX12 are reversible and feature totally enclosed external rotor motors.
Running costs are impressively low, and when not in use the silent electro-thermal shutter cassette closes silently against backdraughts.
  • Fan Controllers, FR2230 for single fan 2 speeds and reverse.
  • Low speed only applies if fan used with FR22/30 controller. If a controller is not used the fan is only single speed (high)
  • EC6H for up to 6 fans, variable speeds and reverse.
  • Both controllers have an on / off setting.
  • Speeds - 2*
  • Extract performance (FID, m³/h) high/low - 1715 / 1162
  • Extract performance (FID, l/s) high/low - 476 / 179
  • Intake performance (FID, m³/h) high/low - 969 / 815
  • Intake performance (FID, l/s) high/low - 269 / 226
  • Sound pressure level (dB(A)@3m) high/low - 54 / 48
  • Electrical power rating (W) - 85w
  • Hole diameter (w x h mm) - 434 x 434mm
  • Wall thickness (mm) - 275 – 375mm
  • Weight (kg) 14kg
  • UK Guarantee (years) 2

Technical:

Installation / User Handbooks / Dimensions

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

XP WX12

Xpelair WX12 Wall Extractor Fan

EACH

3+

£332.75

£322.95

EACH

3+

£399.30

£387.54
