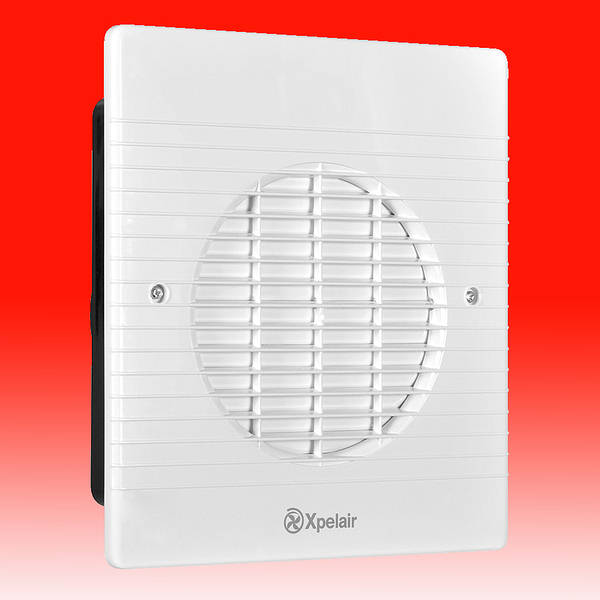

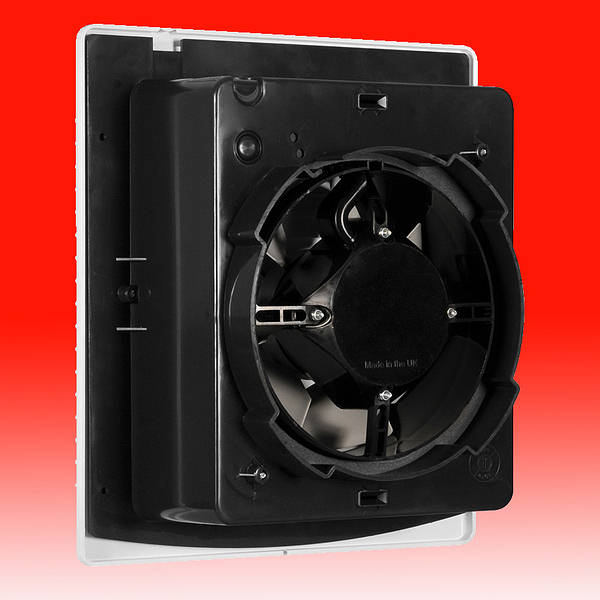

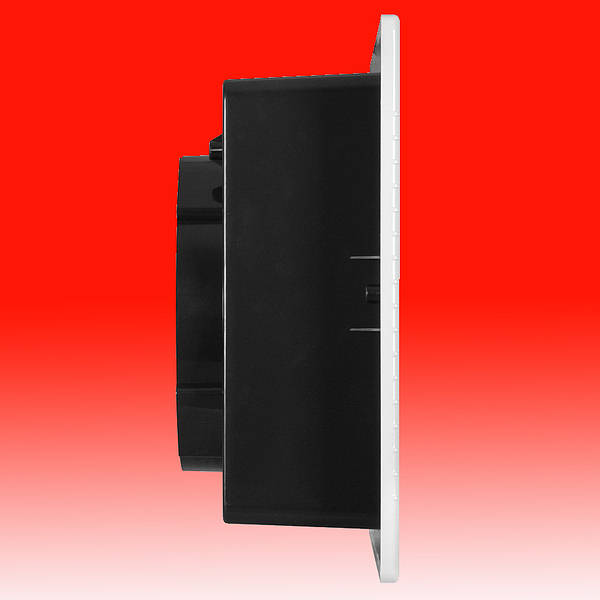

Xpelair WX6 Wall Extractor Fan Special Offer
Product Code: XP WX6EC
5013562925020
WX6EC / X-071422
Loading …
Height; - 321mm.
Width: - 290mm.
Depth: - 11mm.
Wall Depth:
Min: - 119mm.
Max: - 292mm.
Hole diameter:
Width: 245mm.
Height: 268mm.
Wall thickness:
275mm - 375mm.
Weight (kg): 6.40kg.
Max Wattage: 34w.
Xpelair WX6EC Fan
Commercial wall fans with plastic corrugated wall liner
WX commercial duty wall fans are designed for pubs,
restaurants, offices, kitchens, factories, schools and shops.
Suitable for single, cavity brick and timber frame walls.
The low profile white fascia is styled to blend in cleanly with commercial surroundings.
For safety, a finger-guard is integrated into the ultra slim
high gloss ABS fascia and the exterior wall grille design.
- Speeds - 1.
- Now with ‘safe lock’ metal telescopic wall liner.
- Electrothermal shutter cassette.
- WX6 high performance extract only ventilation unit.
- WX9 & WX12 are reversible (with optional speed controller).
- Performance:
Extract performance (FID, m³/h) high/low - 246 m³/h.
Extract performance (FID, l/s) high/low - 68 m³/h.
Sound pressure level (dB(A)@3m) high/low - 39 dB(A)@3m. - Electrical power rating (W) 34w.
- UK Guarantee (years) 2.
Height; - 321mm.
Width: - 290mm.
Depth: - 11mm.
Wall Depth:
Min: - 119mm.
Max: - 292mm.
Hole diameter:
Width: 245mm.
Height: 268mm.
Wall thickness:
275mm - 375mm.
Weight (kg): 6.40kg.
Max Wattage: 34w.
Technical:Installation / User Handbooks / Dimensions Installation WX6 - 3Mb |
|
