Xpelair WX9 Wall Extractor Fan501356292503792503AW

Loading …

Face Plate
Height; - 433mm
Width: - 409mm
Depth: - 18mm

Wall Depth:
Min: - 120mm
Max: - 508mm

Max Wattage: 41w
Xpelair WX9 Fan
9 inch Built-in Wall Fan

Commercial wall fans with ‘safe lock’ metal telescopic wall liner

WX commercial duty wall fans are designed for pubs, restaurants, offices, kitchens, factories, schools and shops. Suitable for single, cavity brick and timber frame walls.

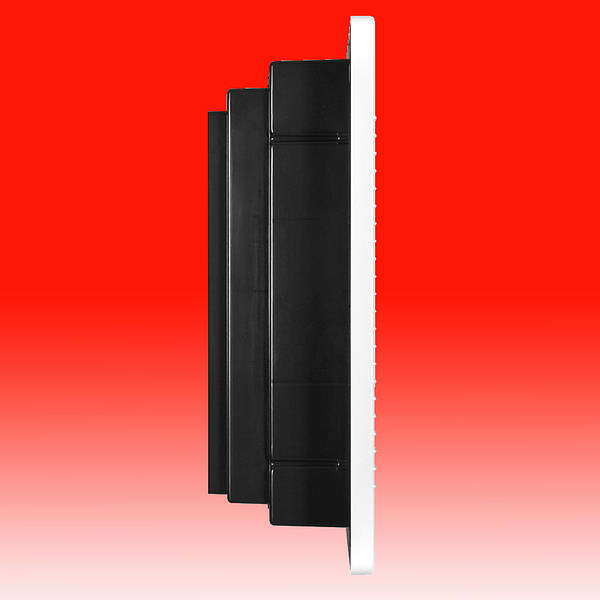

The low profile white fascia is styled to blend in cleanly with commercial surroundings.
For safety, a finger-guard is integrated into the ultra slim high gloss ABS fascia and the exterior wall grille design.

On WX9 and WX12 units a positive plug and socket assembly provides a means of isolation.
All WX models come complete with a wall mounting kit which includes a ‘safe lock’ metal telescopic wall liner.

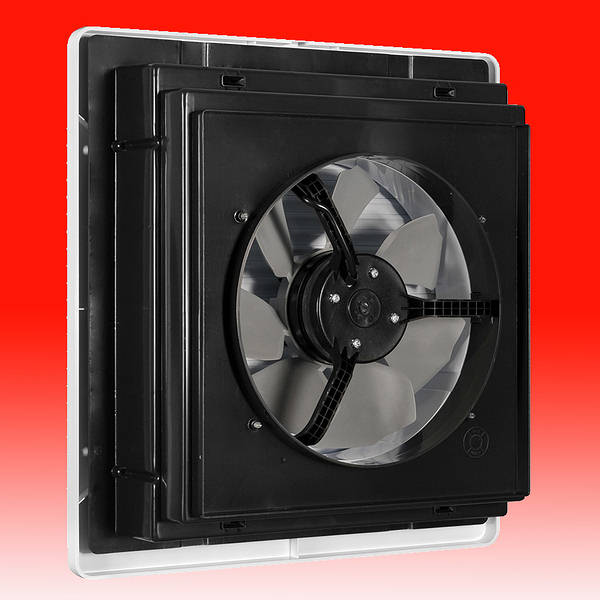

Both the WX9 and WX12 are reversible and feature totally enclosed external rotor motors.
Running costs are impressively low, and when not in use the silent electro-thermal shutter cassette closes silently against backdraughts.
  • Fan Controllers, FR2230 for single fan 2 speeds and reverse.
  • Low speed only applies if fan used with FR22/30 controller. If a controller is not used the fan is only single speed (high)
  • EC6H for up to 6 fans, variable speeds and reverse.
  • Both controllers have an on / off setting.
  • Speeds - 2*
  • Extract performance (FID, m³/h) high/low - 783 / 663
  • Extract performance (FID, l/s) high/low - 248 / 184
  • Intake performance (FID, m³/h) high/low - 477 / 437
  • Intake performance (FID, l/s) high/low - 133 / 121
  • Sound pressure level (dB(A)@3m) high/low - 50 / 47
  • Electrical power rating (W) 41w
  • Hole diameter (w x h mm) - 345 x 375mm
  • Wall thickness (mm)- 275 - 375mm
  • Weight (kg) 10.5kg
  • UK Guarantee (years) 2


Installation / User Handbooks / Dimensions Installation WX9/12 - 1.8Mb
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo XP WX9 Xpelair WX9 Wall Extractor Fan
