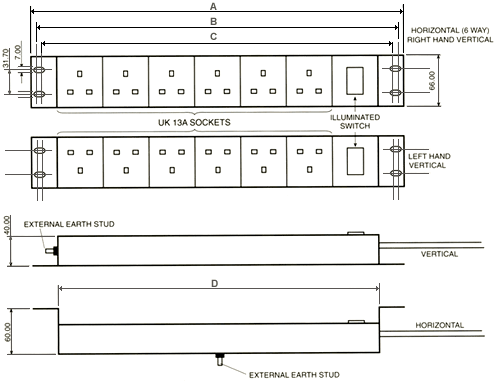

Dimensions (mm)
|
| No of Sockets |
A |
B |
C |
D |
| 4 |
363.00 |
351.00 |
339.00 |
300.00 |
| 5 |
423.00 |
411.00 |
399.00 |
360.00 |
| 6 |
603.00 |
591.00 |
579.00 |
540.00 |
| 10 |
723.00 |
711.00 |
699.00 |
660.00 |
| 12 |
853.00 |
831.00 |
819.00 |
780.00 |
Every unit is tested as follows:
|
| Continuity |
-
|
Between plug
and each socket for live, neutral and earth. |
| Earth
Continuity Limit |
- |
Between
earth pin of plug & external stud is below 0.1
Ohms. |
| Insulation (Flash
Test) |
- |
Greater than
2.0Mohms 1.5kV |
|
| Max. Continuous Voltage |
250V
50Hz |
| Max. Continuous Current |
13 amps
|
| Socket Outlets |
13 amp.
BS 1363 |
| Cable - ( Not Included ) |
1m2
or 1.5mm2 ( 3 core ) H05VV-F |
| Plug |
13 amp.
BS 1363/A |
| Fuse |
13 amp.
BS 1362 |
| Illuminated Double Pole Switch |
15 amp
250VAC.Approved to UL, CSA, VDE SEMKO & SECV
|
