simply replaces existing wall switch - no

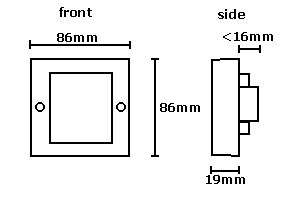

neutral wire is needed. It fits into a plaster depth (16mm) wall box.
The WAOC model also has a manual override off switch on the front of the
plate.
| Time lag range: | 10 seconds to
40 minutes in 9 steps | | Photocell range: | 100
to 1000 lux, and inactive. | | Loading: | Loading
: Any type of load up to 6 amps (including fluorescent lights and fans)
The
minimum load for the WAOC is 60W of resistive load and 100W of fluorescent loads
(The minimum wattage is 60W of resistive loads and 100W of fluorescent loads per
WAOC if wired in parallel). | Instalation
Notes - 31kb pdf

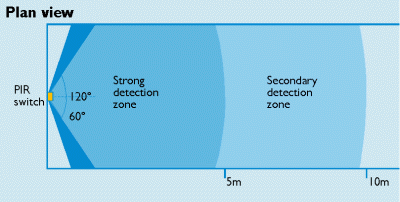

Detection Range
for PIR Wall Switches and Ceiling Directional Plan View |
