Universal Ku Band 4-Output LNB With Bracket

Loading …

Dimensions:
Weight: 0.30kg.
Philex

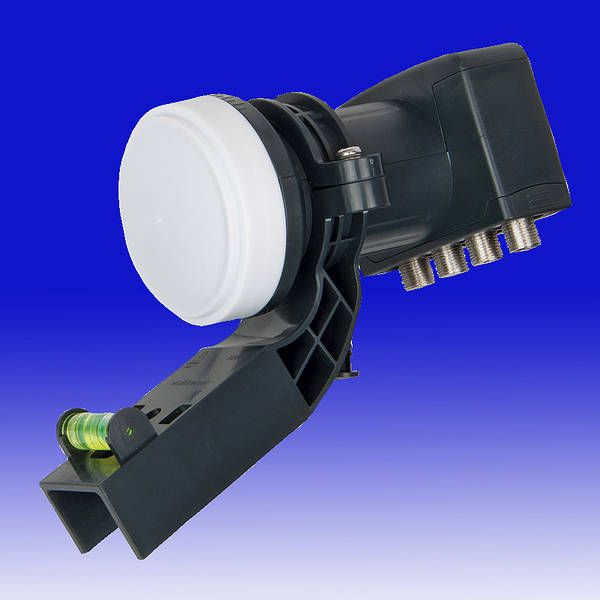

Universal Ku Band 4-Output LNB With Bracket
Finished in grey.

Built-in spirit level.

Supplied with a SkyTM compatible bracket.

Includes 25MHz PLL crystal technology to ensure rock-solid
frequency stability across a wider range of operating temperatures.
  • Input frequency:
    Low band: 10.7~11.7GHz.
    High band: 11.7~12.75GHz.
  • Output frequency:
    Low band: 950~1950MHz.
    High band: 1100~2150MHz.
  • L.O. stability:
    +/- 1.0MHz @ 25°C.
    +/- 3.0MHz @ -30°C~ +60°C.
  • Phase noise:
    -50dBc/hz @ 1kHz.
    -75dBc/hz @ 10kHz.
    95dBc/hz @ 100kHz.
  • L.O. frequencies -9.75/10.6GHz.
  • Noise gure 0.5dB (Typ).
  • Conversion gain 55dB (min)/65dB (max).
  • Gain atness 0.75dB (min)/26MHz (max).
  • Cross polar isolation 25dB (Typ).
  • Image rejection 40dB (min).
  • Operating temperature -30°C~ +60°C.
  • Power consumption -200mA (max).
  • RED compliance - EN 303 372-1.

Technical:

MXVK4L Datasheet 500kb MXVK4L Instructions 800kb
