Universal Ku Band 4-Output LNB With Bracket
Product Code: MX VK4L
5050171076972
VK4L
Loading …
Weight: 0.30kg.
Philex

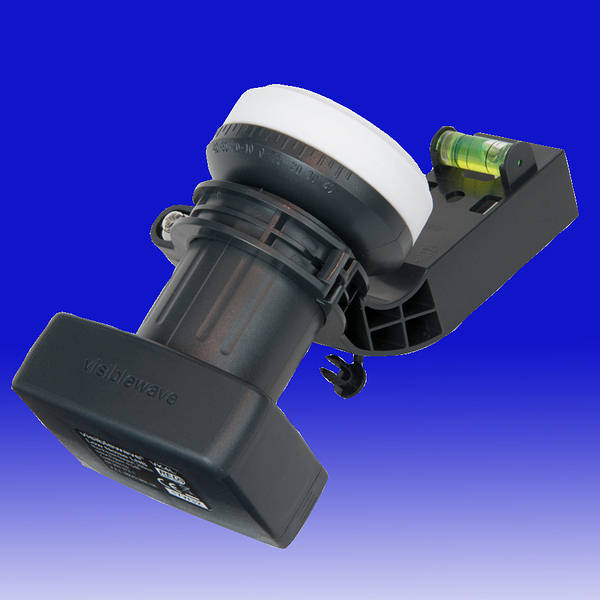

Universal Ku Band 4-Output LNB With Bracket
Universal Ku Band 4-Output LNB With Bracket
Finished in grey.
Built-in spirit level.
Supplied with a SkyTM compatible bracket.
Includes 25MHz PLL crystal technology to ensure rock-solid
frequency stability across a wider range of operating temperatures.
Built-in spirit level.
Supplied with a SkyTM compatible bracket.
Includes 25MHz PLL crystal technology to ensure rock-solid
frequency stability across a wider range of operating temperatures.
-
Input Frequency:
Low Band: 10.7~11.7GHz
High Band: 11.7~12.75GHz. - Output Frequency:
Low Band: 950~1950MHz
High Band: 1100~2150MHz. - L.O. Phase Noise (25°C)
@ 1kHz: -65dBc/Hz (typ.), -55dBc/Hz (max.)
@ 10kHz: -83dBc/Hz (typ.), -75dBc/Hz (max.)
@ 100kHz: -95dBc/Hz (typ.), -90dBc/Hz (max.). - L.O. Frequencies 9.75GHz (LB) / 10.6GHz (HB).
- L.O. Stability 0.5-1.0MHz @ 25°C, 0.5-1.0MHz @ -40~70°C.
- Connector Type 75 female F-connector.
- Operating Temp. -40ºC ~ +70ºC.
- RED Compliance EN 303 372-1.
- Feedhorn - Linear Optimised for offset dish.
- Output VSWR (950 - 2150MHz) Ratio 2.0:1 (typ.), 2.5:1 (max.).
- Conversion Gain 55~63dB @ 25ºC, 53~60dB @ -40ºC~70ºC.
- Gain Flatness Over Full Band 3dB P-P (typ.), 5dB P-P (tmax.).
- Gain Flatness Over 26MHz ± 0.5dB P-P (typ.)± 0.75dB P-P (max.).
- Gain Flatness Over 300MHz ± 4dB P-P (typ.), ± 5.5dB P-P (max.).
- Spurious Gain @ 1.7GHz -50dB (typ.) -47dB (max.).
- Noise Figure 1dB (typ.), 1.2dB (max.).
- Cross Polar Isolation 18dB (min.)20dB (typ.).
- Image Rejection 37dB (min), 40dB (typ.).
- Current Consumption 120mA (typ.), 140mA(max.) 12V.
Weight: 0.30kg.
