TP&N Switch Isolator - Steel Enclosure - IP65
Loading …
FBTPNI032
FuseBox
TP&N Switch Isolator
Steel Enclosure - IP65
TP&N Switch Isolator
Steel Enclosure - IP65
3 Pole and Neutral isolators for safe and effective power disconnection from 32A to 125A (AC-23A rating).
FuseBox isolators are housed in large, robust 1.2mm IP65 steel enclosures, complete with removable gland plates at the top and bottom for a flexible installation. A red/yellow door interlock handle provides clear ON/OFF indication.
The door is mechanically interlocked when in the ‘ON’ position and can be padlocked when switched ‘OFF’.
Designed for electricians, the signature spacious interior makes wiring fast and frustration-free.
FuseBox isolators are housed in large, robust 1.2mm IP65 steel enclosures, complete with removable gland plates at the top and bottom for a flexible installation. A red/yellow door interlock handle provides clear ON/OFF indication.
The door is mechanically interlocked when in the ‘ON’ position and can be padlocked when switched ‘OFF’.
Designed for electricians, the signature spacious interior makes wiring fast and frustration-free.
- AC-23A: 32A, 63A, 80A, 100A, and 125A options to suit commercial and industrial installations
- Large, durable 1.2mm steel enclosure with a powder-coated RAL7035 finish
- Manually operated red/yellow handle for secure ON/OFF isolation
- Mechanically interlocked door in the ‘ON’ position to prevent access
- Handle can be padlocked in the OFF position for extra-secure isolation (max. 3 padlocks)
- Removable gland plates at the top and bottom
- Spacious internal layout ensures easy cable termination
- Operating temperature range of -25°C to 55°C
Technical:TP&N Isolators Brochure - 470kb pdf TP&N Isolators Datasheet - 4.1mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

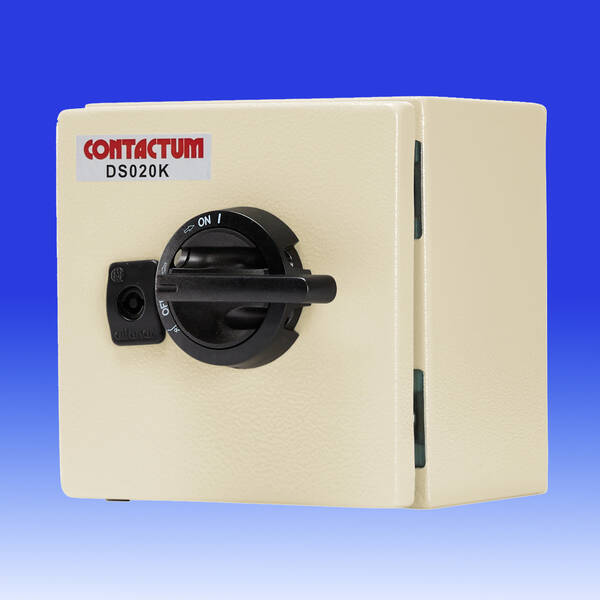

Contactum Switchgear TP Isolators / Switches
Loading …
See product for Accessories
'S' Type Three Pole Switches (hinged doors)
Pistol Grip Handles
Pistol Grip Handles
- Fully rated solid neutral
- Gland plate (100A+)
- Interlocked padlockable cam switch
- To BS EN 60947-3
- RAL7044 light grey finish
- Fully rated AC23 on load switch disconnectors
- Aux. switches and switched neutrals available (please contact Contactum)
| See product for Accessories |
Technical:Datasheet - 315kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Lewden - TP&N Isolators
Loading …
63A shown
63A shown
Lewden

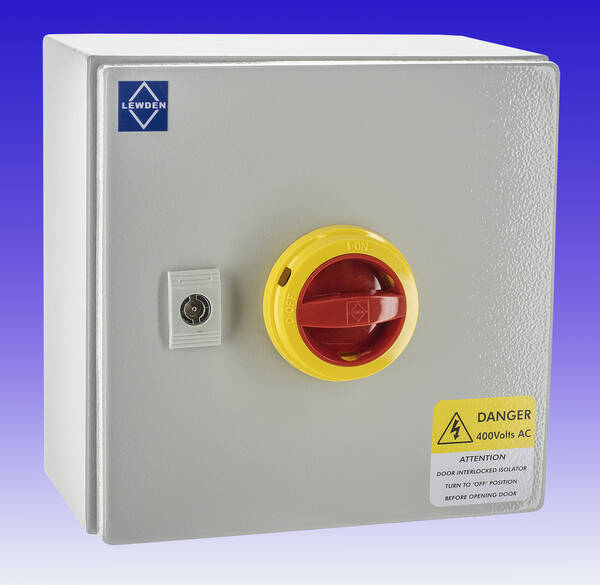

TP&N Switch Metal Clad - IP65
TP&N Switch Metal Clad - IP65

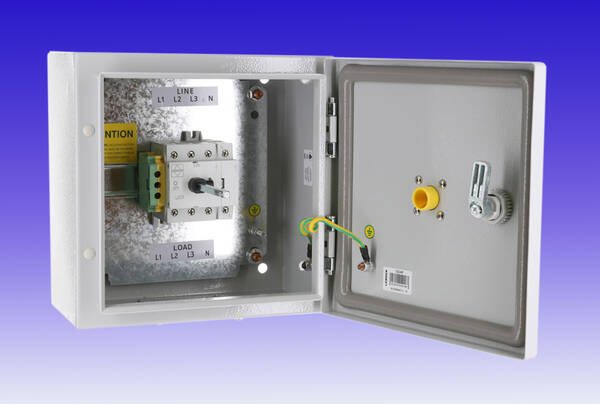

Powder coated mild steel enclosure with a wide space for comfortable wiring.
- Fully rated to AC-23A category - allows safe operation even with highly inductive loads (e.g. Motors, etc.)
- Robust and wide IP65 enclosure
- Manufactured from powder coated steel
- Padlockable and interlocked door
- Conforms to BS EN 60947-3
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Hager - TP&N Isolators
Loading …
See product for Accessories

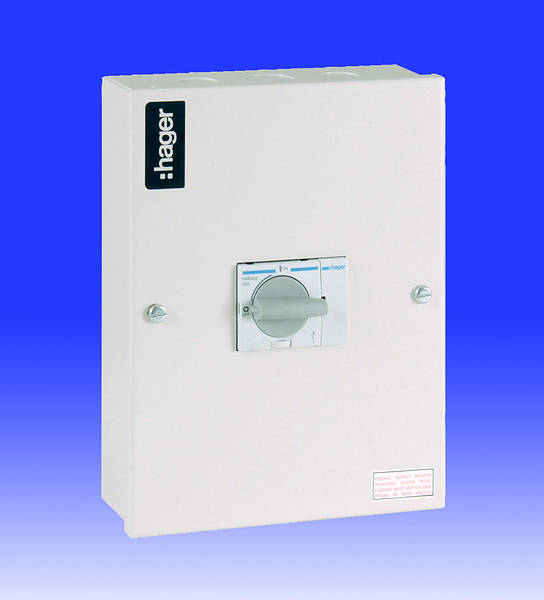

Hager - TP&N Isolators
FCS, TPN and panel board ranges by providing individual protection and control of individual circuits up to 800A.
The enclosures have been designed to provide adequate cabling space
without the need for additional cable spreader boxes.
Operation of the device is through a door mounted rotary handle which is mechanically
interlocked to prevent access to live conductors when the switch is in the on position.
The handle is also padlockable in the off position.
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

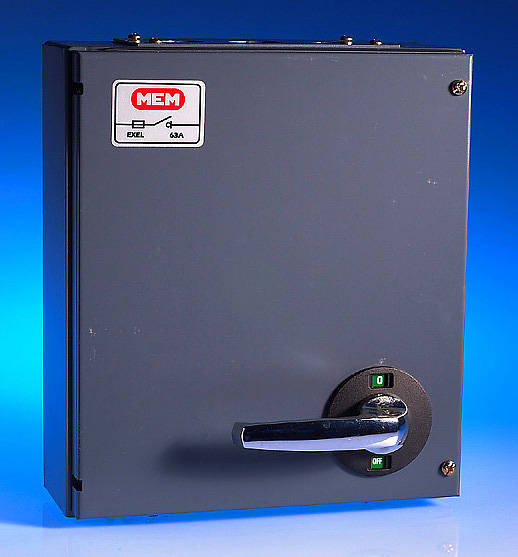

MEM - TP&N Isolators Switches
Loading …
See product for Accessories
MEM - TP&N Isolators Switches
| See product for Accessories |
|
