100A TP&N Switch Isolator - Steel Enclosure - IP65
Product Code: FB TPNI100
5060523524686
TPNI100
Loading …
Height: 300mm
Width: 300mm
Depth: 150mm
FuseBox

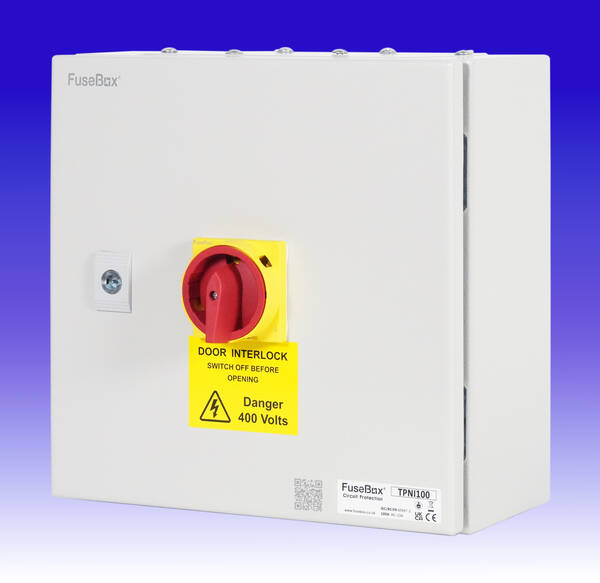

100A TP&N Switch Isolator
Steel Enclosure - IP65
100A TP&N Switch Isolator
Steel Enclosure - IP65
3 Pole and Neutral isolators for safe and effective power disconnection from 32A to 125A (AC-23A rating).
FuseBox isolators are housed in large, robust 1.2mm IP65 steel enclosures, complete with removable gland plates at the top and bottom for a flexible installation. A red/yellow door interlock handle provides clear ON/OFF indication.
The door is mechanically interlocked when in the ‘ON’ position and can be padlocked when switched ‘OFF’.
Designed for electricians, the signature spacious interior makes wiring fast and frustration-free.
FuseBox isolators are housed in large, robust 1.2mm IP65 steel enclosures, complete with removable gland plates at the top and bottom for a flexible installation. A red/yellow door interlock handle provides clear ON/OFF indication.
The door is mechanically interlocked when in the ‘ON’ position and can be padlocked when switched ‘OFF’.
Designed for electricians, the signature spacious interior makes wiring fast and frustration-free.
- AC-23A: 32A, 63A, 80A, 100A, and 125A options to suit commercial and industrial installations
- Large, durable 1.2mm steel enclosure with a powder-coated RAL7035 finish
- Manually operated red/yellow handle for secure ON/OFF isolation
- Mechanically interlocked door in the ‘ON’ position to prevent access
- Handle can be padlocked in the OFF position for extra-secure isolation (max. 3 padlocks)
- Removable gland plates at the top and bottom
- Spacious internal layout ensures easy cable termination
- Operating temperature range of -25°C to 55°C
Height: 300mm
Width: 300mm
Depth: 150mm
Technical:TP&N Isolators Brochure - 470kb pdf TP&N Isolators Datasheet - 4.1mb pdf |
|
