LEDlite - Slim Polo CCT LED Bulkhead -Tri Wattage
Loading …
LT P3CCT
LT P3CCTEM
Diameter: 315mm
Projection: 80mm
See product for Accessories
LEDlite

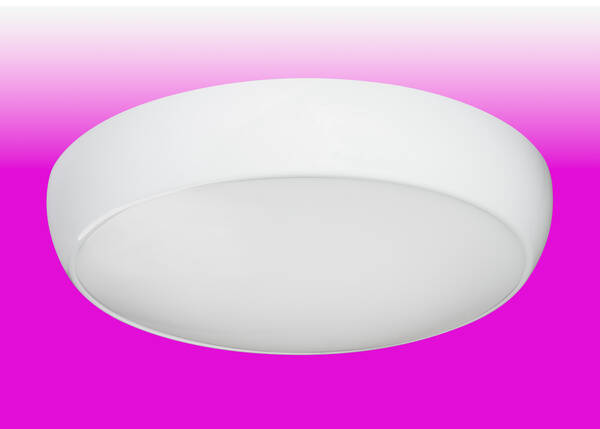

Slim Polo CCT LED Bulkhead -Tri Wattage
Slim Polo CCT LED Bulkhead -Tri Wattage

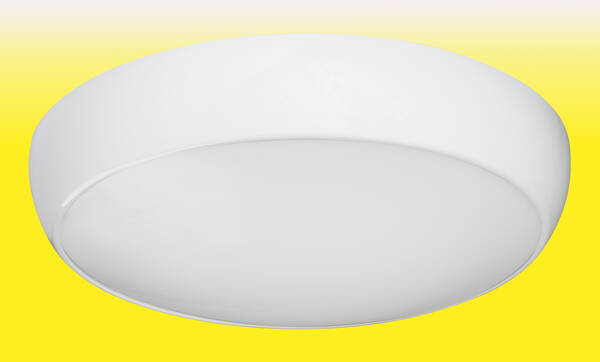

EM Version is Maintained or Non-Maintained
Zero maintenance, slim Polo LED bulkhead, CCT changeable and wattage selectable.
Ideal for common areas of domestic and commercial environments such as;
multiple blocks of flats, workshops, garages, warehouses and sports halls.
The unit features easily accessible CCT & power changeable switches, with the power switchable
between 9W/14W/18W and the colour temperature between 3000K/4000K/6500K.
For maximum flexibility during installation, the unit offers multiple cable entries,
including one central and two on the sides to accommodate 20mm conduit.
The gear tray is hinged to allow for easy access to the wiring connections.
A clip-on trim bezel allows the installer to easily conceal any conduit entry points utilised during installation, to provide a neat finish.
Zero maintenance, slim Polo LED bulkhead, CCT changeable and wattage selectable.
Ideal for common areas of domestic and commercial environments such as;
multiple blocks of flats, workshops, garages, warehouses and sports halls.
The unit features easily accessible CCT & power changeable switches, with the power switchable
between 9W/14W/18W and the colour temperature between 3000K/4000K/6500K.
For maximum flexibility during installation, the unit offers multiple cable entries,
including one central and two on the sides to accommodate 20mm conduit.
The gear tray is hinged to allow for easy access to the wiring connections.
A clip-on trim bezel allows the installer to easily conceal any conduit entry points utilised during installation, to provide a neat finish.
- Input voltage: 220-240V/AC
- Wattage selectable: 9W/14W/18W
- Lumen output:
9W - 900lm
14W - 1450lm
18W - 1850lm - CCT Switchable:
3000K/4000K/6500K
- CRI >80
- 80mm slim design
- IP rating: IP54
- Protection class: Class II
- Housing: Polycarbonate body & diffuser
- Operating temperature: -15ºC to +40ºC
- 5 Year warranty
Diameter: 315mm
Projection: 80mm
| See product for Accessories |
Technical:Datasheet - 1.2mb pdf LTP3CCT Instructions - 670kb pdf LTP3CCTEM Instructions - 1.7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

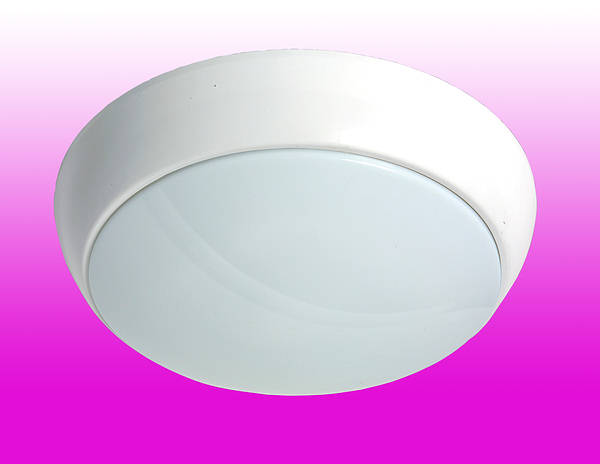

LEDlite - Polo LED White/Opal
Loading …
See product for Accessories
LEDlite
Polo LED White/Opal
Polo LED White/Opal
Light Output better than 2D 28w
Ideal for most areas domestic and commercial
i.e. Home, Workshops, Garages,
Shops, Commercial Toilets, Sports Halls, Gyms and Changing rooms
New Colour Trims - Black - Chrome - Satin Brass - Polished Brass - Satin Silver
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

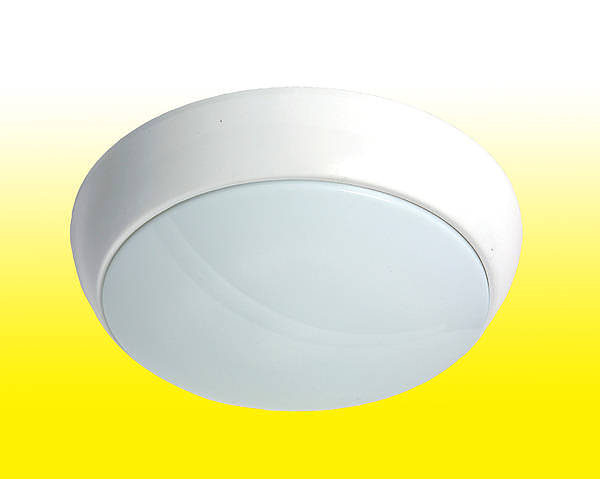

LEDlite - Polo LED White/Opal + Emergency
Loading …
See product for Replacement Batteries and Accessories
LEDlite
Polo LED White/Opal + Maintained Emergency Back Up
Polo LED White/Opal + Maintained Emergency Back Up
Light Output better than 2D 28w
Ideal for most areas domestic and commercial
i.e. Home, Workshops, Garages,
Shops, Commercial Toilets, Sports Halls, Gyms and Changing rooms
New Colour Trims - Black - Chrome - Satin Brass - Polished Brass - Satin Silver
- See each product
| See product for Replacement Batteries and Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LEDlite - Polo LED White/Opal + Motion Sensor
Loading …
See product for Accessories
LEDlite
Polo LED White/Opal
c/w Energy Efficient Motion Sensor
Polo LED White/Opal
c/w Energy Efficient Motion Sensor
Light Output better than 2D 28w
Ideal for most areas domestic and commercial
i.e. Home, Workshops, Garages,
Shops, Commercial Toilets, Sports Halls, Gyms and Changing rooms
New Colour Trims - Black - Chrome - Satin Brass - Polished Brass - Satin Silver
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LEDlite - Polo LED White/Opal + Sensor + Emergency
Loading …
See product for Replacement Batteries and Accessories
LEDlite
Polo LED White/Opal
c/w Energy Efficient Motion Sensor &
3hr Maintained Emergency Back Up
Polo LED White/Opal
c/w Energy Efficient Motion Sensor &
3hr Maintained Emergency Back Up
Light Output better than 2D 28w
Ideal for most areas domestic and commercial
i.e. Home, Workshops, Garages,
Shops, Commercial Toilets, Sports Halls, Gyms and Changing rooms
New Colour Trims - Black - Chrome - Satin Brass - Polished Brass - Satin Silver
- See each product
| See product for Replacement Batteries and Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Polo LED White/Opal c/w Corridor Motion Sensor
Loading …
See product for Accessories
LEDlite
Polo LED White/Opal
c/w Energy Efficient Corridor Motion Sensor
Polo LED White/Opal
c/w Energy Efficient Corridor Motion Sensor
Giving the area a glow rather than completely off
Power Consumption 14w
Light Output better than 2D 28w
Ideal for most areas domestic and commercial
i.e. Home, Workshops, Garages,
Shops, Commercial Toilets, Sports Halls, Gyms and Changing rooms
New Colour Trims - Black - Chrome - Satin Brass - Polished Brass - Satin Silver
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Polo LED White/Opal c/w Corridor Motion Sensor + Emergency
Loading …
See product for Replacement Batteries and Accessories
LEDlite
Polo LED White/Opal
Energy Efficient Corridor Motion Sensor
c/w built-in 3hr+ Maintained Emergency Back Up
Polo LED White/Opal
Energy Efficient Corridor Motion Sensor
c/w built-in 3hr+ Maintained Emergency Back Up
Giving the area a glow rather than completely off
Power Consumption 14w
Light Output better than 2D 28w
Ideal for most areas domestic and commercial
i.e. Home, Workshops, Garages,
Shops, Commercial Toilets, Sports Halls, Gyms and Changing rooms
New Colour Trims - Black - Chrome - Satin Brass - Polished Brass - Satin Silver
- See each product
| See product for Replacement Batteries and Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Trims for LED Polo & 2D28w Polo Range
Trims for LED Polo & 2D28w Polo Range
Technical:14W Polo Datasheet 1.8mb - pdf |
|
