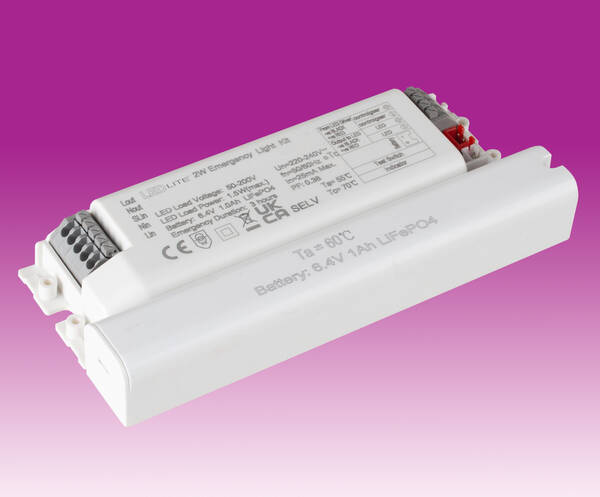

Plug-in Emergency Pack Module for Polo, Galaxy, Wall Pack
Product Code: LT EM
5055800110591
LTEM
Loading …

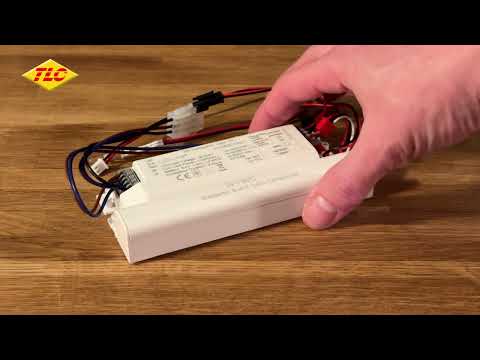

Watch VideoDimensions:
143mm x 62mm x 22mm
143mm x 62mm x 22mm
LEDlite
Plug-in Emergency Pack Module for Polo, Galaxy, Wall Pack
Plug-in Emergency Pack Module for Polo, Galaxy, Wall Pack
This Emergency Pack is designed specifically for LED lights, providing constant power in an isolated emergency configuration with primary output (LOut) control. The power supply uses an advanced circuit design, resulting in high efficiency, fast startup, and low standby power consumption.
It is built for reliability, low noise, no flicker, energy efficiency, environmental friendliness, and long-
lasting performance.
Compatible with:
Polo LTPCCT, Galaxy LTG1CCT, Galaxy LTG2CCT, LTDCB18CCT Die-Cast Bulkhead,
LTWP18CCT/LTWP24CCT Wall packs
It is built for reliability, low noise, no flicker, energy efficiency, environmental friendliness, and long-
lasting performance.
Compatible with:
Polo LTPCCT, Galaxy LTG1CCT, Galaxy LTG2CCT, LTDCB18CCT Die-Cast Bulkhead,
LTWP18CCT/LTWP24CCT Wall packs
- For maintained or non-maintained emergency lighting systems
- Easy plug-in install between driver and LED module via internal plugs
- Conforms to EN 61347-1, EN 61347-2-7 and EN 61347-2-13
- Thermal & surge protection
- Voltage change-over threshold according to EN 60598-2-22
- Over 3 hours rated duration
- Replaceable internal LiFePO4 battery pack
- Over-charge, over-current, short-circuit and deep discharge protection for battery
- Test button for a quick functional test
- Green charging status LED
- Constant power output
- Output wattage: 2W
- Input voltage: 220-240V AC, 50/60Hz
- Input current (max.): 30mA
- Output voltage: 50-200V DC
- Output current: 8-30mA
- Open circuit voltage: 200V DC
- IP rating: IP20
- Input to output protection: double insulation
- Emergency operation time: >3h
- Emergency conversion time: <1s
- Manual test function
- Input connection: male/female plugs
- Output connection: male/female plugs
- Maximum case temperature: 75°C
- Ambient temperature range: 0° to 50°C
- Power factor: 0.4
- Battery type: Lithium - LiFePo4
- Battery capacity: 1000mAh
- Battery voltage: 6.4V
- Battery charge voltage: 7.2V DC
- Battery charge current: 70-260mA
- Battery discharge voltage: 5.8-7.4V DC
- Battery discharge current: 248-320mA
- Charging time: >24h
- Battery life: 3 years
Watch VideoDimensions:
143mm x 62mm x 22mm
143mm x 62mm x 22mm
Technical:LTEM Datasheet - 1.8mb pdf Instructions - 1.6mb pdf |
|
