Jelly Crimps
See product for Accessories

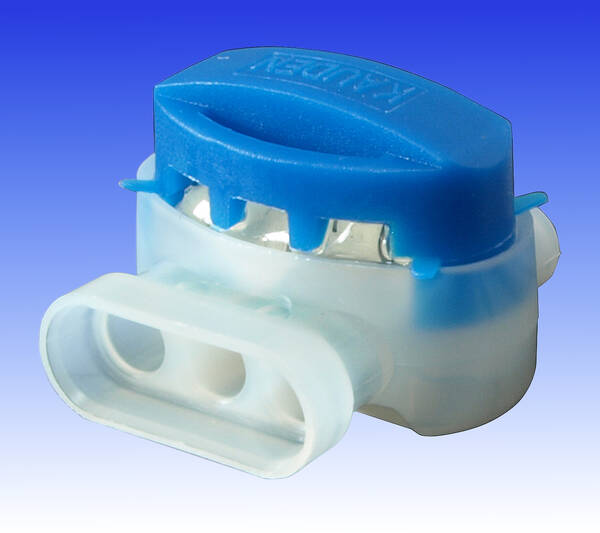

Jelly Crimps
The connector’s two ports accept two solid copper conductors.
The connector is filled with a sealant to provide moisture resistance.
These connectors are most commonly used to join BT CW1308 telephone cable, or any similar sized solid copper conductor cable.
As there is a moisture barrier gel inside the connectors, they can be used internally or externally.
There are 2 contact blades for each wire, providing excellent connectivity for telephone and broadband.
They are extremely easy to use. Just insert the wires that need to be spliced into each hole
and press the red button down into the transparent plastic housing
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
240V 15A 3 Core Jelly Crimp - Pack of 20
Loading …
See product for Accessories
240V 15A 3 Core Jelly Crimp
Pack of 20
Pack of 20
Designed for applications covering aerial, buried and underground locations.
Filled with sealant ensuring performance in the most stringent environmental conditions. The connector can provide total environmental sealing around IDC-contacts. The filling compound is prepared from fully synthetic dimethyl silicone fluid.
All material is suitable for operation with maximum temperature up to 70°C.
Filled with sealant ensuring performance in the most stringent environmental conditions. The connector can provide total environmental sealing around IDC-contacts. The filling compound is prepared from fully synthetic dimethyl silicone fluid.
All material is suitable for operation with maximum temperature up to 70°C.
- For connecting two or three solid or stranded core mains wires
- Filled with a moisture resistant compound
- No need to strip insulation - uses Insulation Displacement Connecters (IDC)
- Designed for 0.5mm to 1.5mm copper or copper-clad cables
- Max. insulation diameter: 3.5mm
- Max. current: 15A
- Working temperature range: -30°C to 70°C
- Working humidity range: 0% to 95%
| See product for Accessories |
Technical:FXBR4 Datasheet - 200kb pdf |
|
