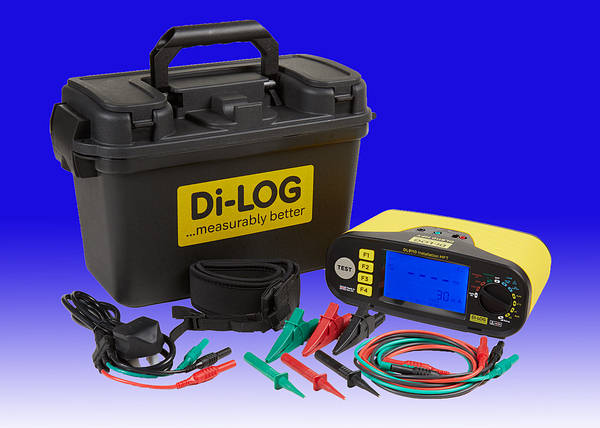

Di-Log DL9110 18th Edition Multifunction Tester

Loading …

TM DL9110

Di-Log
DL9110 18th Edition Multifunction Tester
18th Edition Multifunction Tester

The ALL NEW DL9110 Multifunction Tester has been designed to fully comply with the testing requirements of the 18th Edition.
It also incorporates many of the features that we have come to expect with modern MFTs.
It is designed to be worn around the neck with a comfortable harness, for easy function selecting and testing.

The DL9110 is the entry level instrument in the series packed full of features,
such as a Auto Start Loop & Continuity, the UK’s largest colour changing RGB LCD display screen indicating error, Auto RCD test with Ramp feature and has Full Range Protection if tester is accidentally connected to voltage on a dead test.

The DL9110 also comes complete with a toolbox style carry case, full calibration certificate and an option to upgrade from the 2 year warranty to a 3 year warranty.

All in all, the DL9110 offers incredible value for a feature packed MFT meeting all the safety and performance requirements of BS EN 61557.

The All NEW RCD-LOC XLT ‘patent pending’ feature allows loop testing without tripping any type of RCD or RCBO with very high accuracy.

Technical:

Data Sheet 164kb.PDF Instructions 1.8Mb PDF
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo TM DL9110 DL9110 18th Edition Multifunction Tester

EACH

£399.00

EACH

£478.80

Di-Log DL9118 Multi Function Tester

Loading …

Di-Log
DL9118 Multi Function Tester
The ALL NEW DL9118 multifunction tester has been designed to fully comply with the testing requirements of the 18th Edition. It also incorporates many of the features that we have come to expect with modern MFTs. It is designed to be worn around the neck with a comfortable harness, for easy function selecting and testing.

The All NEW RCD-LOC XLT feature allows loop testing without tripping any type of RCD or RCBO with very high accuracy. The DL9118 is also packed full of features, such as a Remote Test Probe, Auto Start Loop & Continuity, colour changing LCD display indicating error, and comes complete with a toolbox style carry case. All in all, the DL9118 offers incredible value for a feature packed MFT meeting all the safety and performance requirements of BS EN 61557.

Technical:

Data & Specifications 192kb PDF
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo TM DL9118 DL9118 Multi Function Tester

EACH

£448.95

EACH

£538.74

18th Edition Multifunction Test Meter

Loading …

Power supply
6 x 1.5 V AA batteries

Dimensions
260 x 105 x 55
Di-Log
18th Edition Multifunction Test Meter
The all new 9083P multi function tester has been designed to take into account
the requirements of the forthcoming 18th Edition and Part P testing standards.
It also incorporates many of the features that you have requested.
The unique RCD-LOC feature allows loop testing without tripping any type of RCD.
The 9083P is fully compliant with the performance requirements of BS EN 61557

  • Loop impedance measurement without tripping out any RCD
  • Insulation measurement with 100, 250, 500 V test voltages
  • RCD testing, trip time, trip current, ramp current
  • RCD auto test without going between the unit and RCD. With a recall of the test results.
  • Continuity test with auto null facility to zero out lead resistance
  • Protected against damage when accidentally connected across phases
  • Integrated polarity test
  • Display
    31/2 digit LCD 1999 digits
  • Insulation resistance
    0.05 – 2000 Mohm
  • Test voltage at 1mA
    100, 250,500 V
  • Continuity
    0.05 – 199 ohms
  • Loop Impedance
    0.01 – 2000 Ohms
  • PSCC
    0 – 26 Ka
  • RCD nominal test currents
    10, 30, 100, 300, 500 mA, 1/2 x 30 mA, 5 x 30 mA
  • Trip time
    0 ms – 500ms
  • Tripping current with ramp test
    1/2 rated current to 1.1 rated current
  • Voltage
    0 – 440 V
  • Frequency
    45 – 65 Hz
  • Safety standards
    EN61010, BS EN 61557 BS 7671
  • Over voltage category
    CAT III 300 V
  • Supplied c/w Batteries
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo TM 9083P 18th Edition Multifunction Test Meter

EACH

£319.95

EACH

£383.94

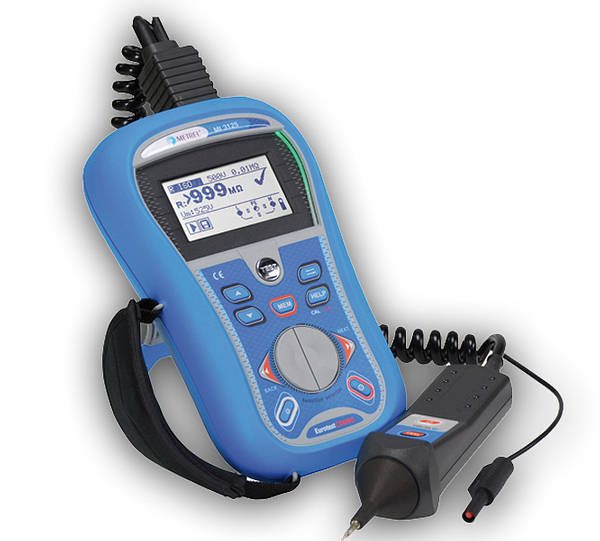

Metrel Mi3125 Combo Lite Multifunction Tester

Loading …

Shown with OPTIONAL
A1175 Tip commander plug in accessory

Dimensions:
140 x 80 x 230 mm
Metrel Mi3125
Combo Lite Multifunction Tester
The MI 3125 is a multifunctional installation safety tester which is distinguished by lightweight design and usability.
Integrated characteristics of fuses and RCDs, help screens, red and green LEDs for PASS / FAIL evaluation of test results
online voltage monitor make the MI 3125 ideally suited for fast and easy testing of electrical installations.

  • TRMS voltage and frequency
  • Continuity
  • Insulation resistance
  • RCD testing (type AC and A)
  • Fault loop / RCD Trip Lock impedance
  • Line impedance
  • Phase sequence
  • Supplied with
  • Instrument Eurotest COMBO
  • Test lead, 3 x 1.5 m
  • Schuko-plug test cable
  • Power supply adapter + 6 NiMH rechargeable batteries, type AA
  • Test probe, 3 pcs (blue, black, green)
  • Crocodile clip, 3 pcs (blue, black, green)
  • Set of carrying straps
  • Short Instruction manual
  • Instruction manual on CD
  • Handbook on CD
  • Calibration certificate
  • LED Pass/Fail indicators: two LED indicators for PASS / FAIL evaluation of test results are placed on both sides of the LCD.
  • Help screens: instrument comes complete with built-in help screens for referencing on site.
  • Built-in fuse tables: this unique feature allows automatic evaluation of the line / loop impedance compared to the regulations.
  • Online voltage monitoring: monitors all 3 voltages in real time.
  • Upgradeable: if changes occur to the regulations, upgrades can be made to the firmware to keep the unit up to date.
  • Polarity swap: automatic polarity re-versal on continuity test.
  • Insulation range: wide range of insulation test voltages from 50 V to 1000 V, reading up to 1000 M?.
  • Trip Lock function: Zs (RCD) function performs a loop impedance test without tripping the RCD.
  • Multi system testing: tests on single and multiphase TT and TN systems.
  • Built-in charger & rechargeable batteries: unit has a built-in charging circuit and comes complete with a set of rechargeable NiMH batteries.
  • RCD auto: automated RCD testing procedure significantly reduces test time.

Technical:

Data/Spec 450Kb pdf Manual 1.7Mb pdf
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo TM 3125CL Metrel Mi3125 Combo Lite Multifunction Tester

EACH

£395.00

EACH

£474.00
